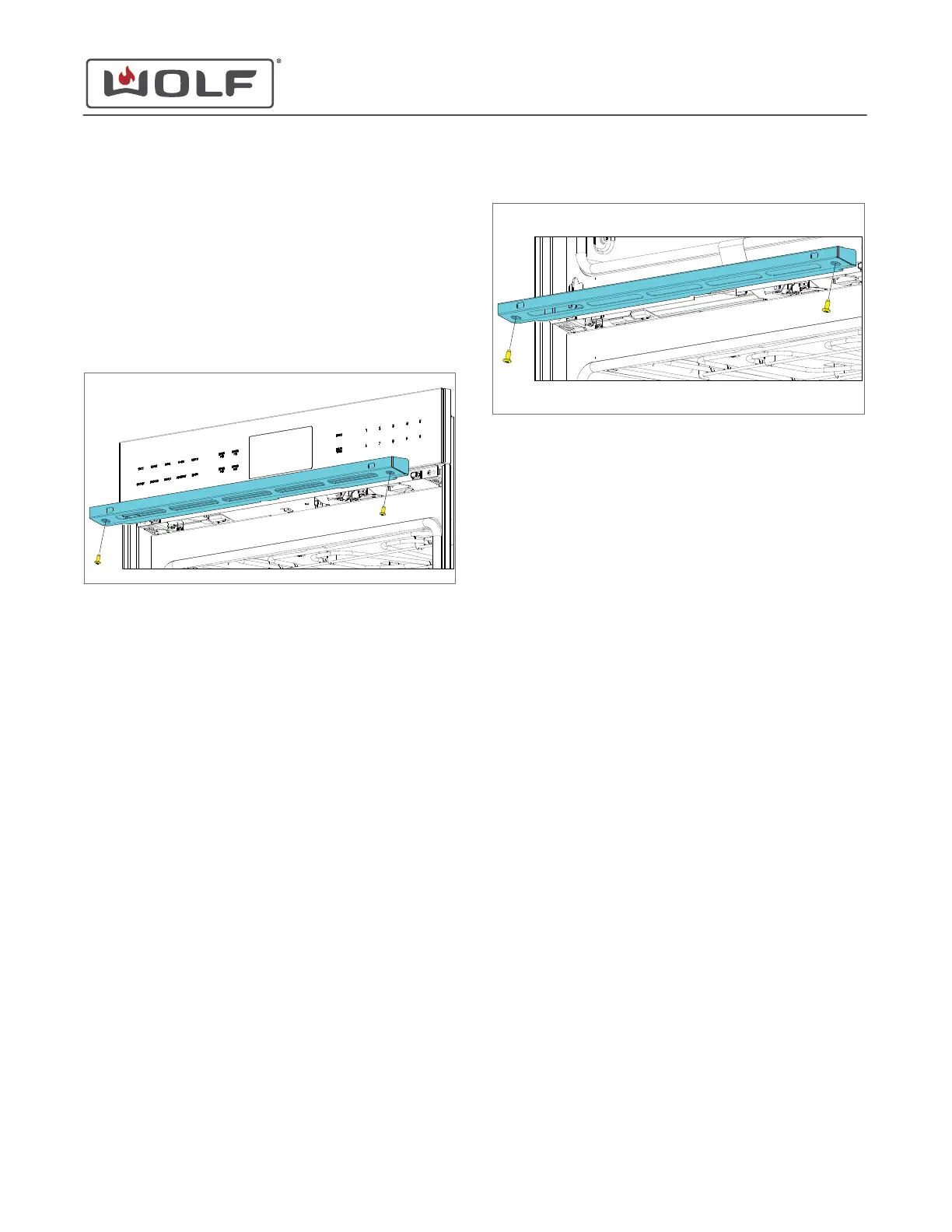

UPPER AIR INLET COVER REMOVAL
Remove the Upper Air Inlet Cover
1 Use a T-15 Torx bit to remove the upper air inlet cover
mounting screws.
2 Pull the upper air inlet cover forward.
3 Remove the upper air inlet cover from the unit.
UPPER AIR INLET COVER INSTALLATION
Install the Upper Air Inlet Cover
1 Place the upper air inlet cover onto the unit.
2 Use a T-15 Torx bit to install the upper air inlet cover
mounting screws.
MIDDLE AIR INLET COVER REMOVAL
Remove the Middle Air Inlet Cover
1 Open the lower oven door.
2 Use a T-15 Torx bit to remove the middle air inlet cover
mounting screws.
3 Pull the middle air inlet cover forward.
4
Remove the middle air inlet cover from the unit.
MIDDLE AIR INLET COVER INSTALLATION
Install the Middle Air Inlet Cover
1 Place the middle air inlet cover onto the unit.
2 Use a T-15 Torx bit to install the middle air inlet cover
mounting screws.
3 Close the lower oven door.
MIDDLE VENT CHANNEL REMOVAL
To remove the middle vent channel, first remove:
1
Upper oven door
2 Middle air inlet cover
Remove the Middle Vent Channel
1 Use a T-15 Torx bit to remove the middle vent channel
mounting screws.
2 Pull the middle vent channel forward.
