To turn on the wireless control panel on any DC (with diesel engine) sawmill:
 Make sure that all switches and joysticks are in the neutral or OFF position. The feed
rate dial should be set to the minimum value.

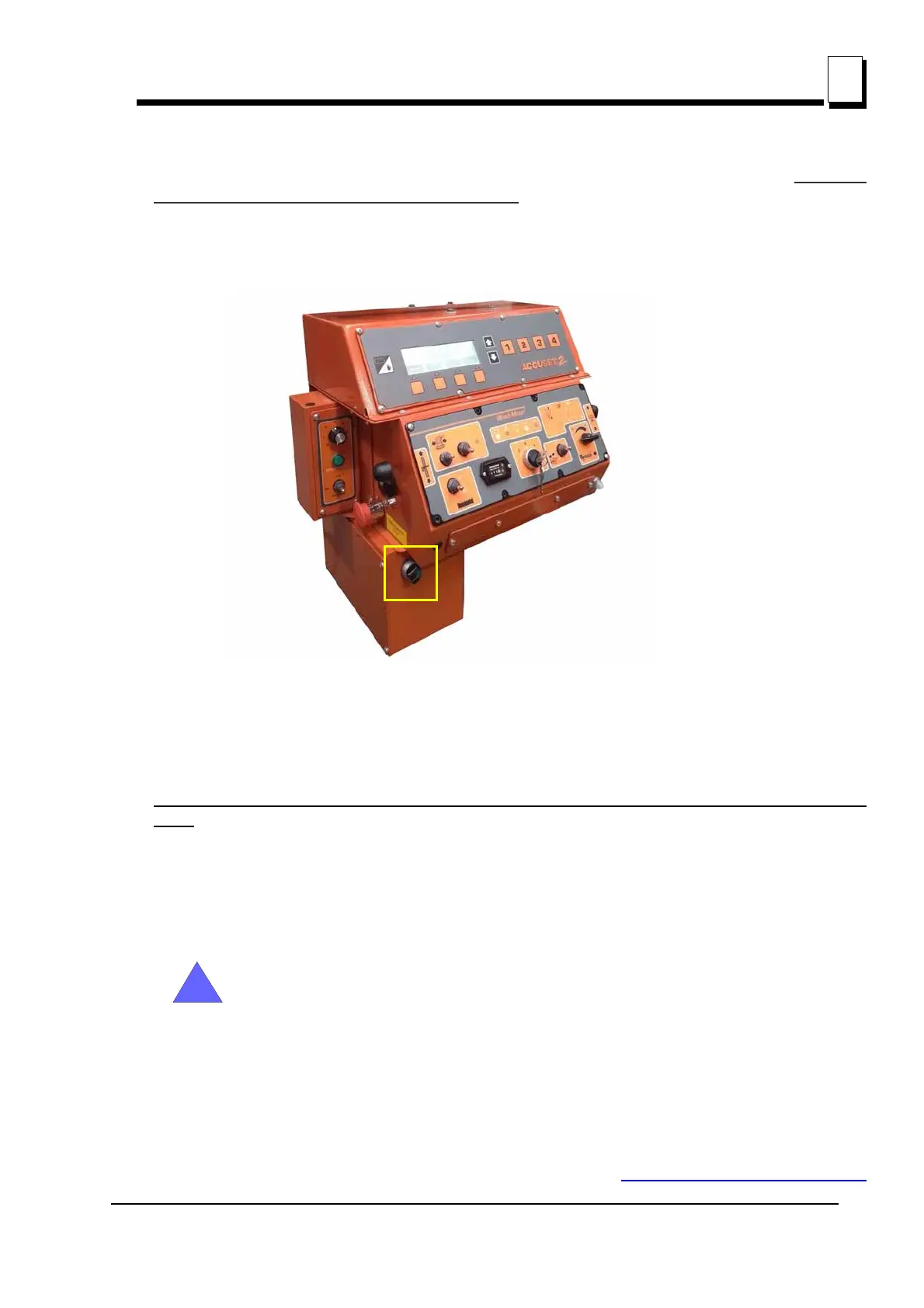

 Check that the switch located on the electric box is in the ON position;
NOTE: When the green switch on the electric box is in the OFF
position, the wireless control system is completely turned off and all
sawmill functions can be activated from the standard control box on
the saw head.
 Make sure the emergency stop buttons are released and the feed rate dial is set to minimum
value.;
 Insert the starting key (Air-KEY) into the corresponding socket located on the right side of the
control panel. Turn the key right to the ”I” position.
 Wait about 3-4 seconds and then push the transmitter activation button.
IMPORTANT! If the emergency stop was pushed at the moment when
the transmitter was activated, or the feed dial was not set to minimum
value, it is necessary to release the emergency stop or set the feed
dial to the minimum value and press the transmitter activation button.
After 3-4 seconds press the transmitter activation button again.
 Start the engine using the key switch located on the sawmill control box (on the saw head);
 Load and clamp the log;
 Program the Accuset controller (or PLC-Setworks/SW-10) (See Accuset, PLC-Setworks or
!
