Optional Table Assembling
3
3-11 EGdoc021023

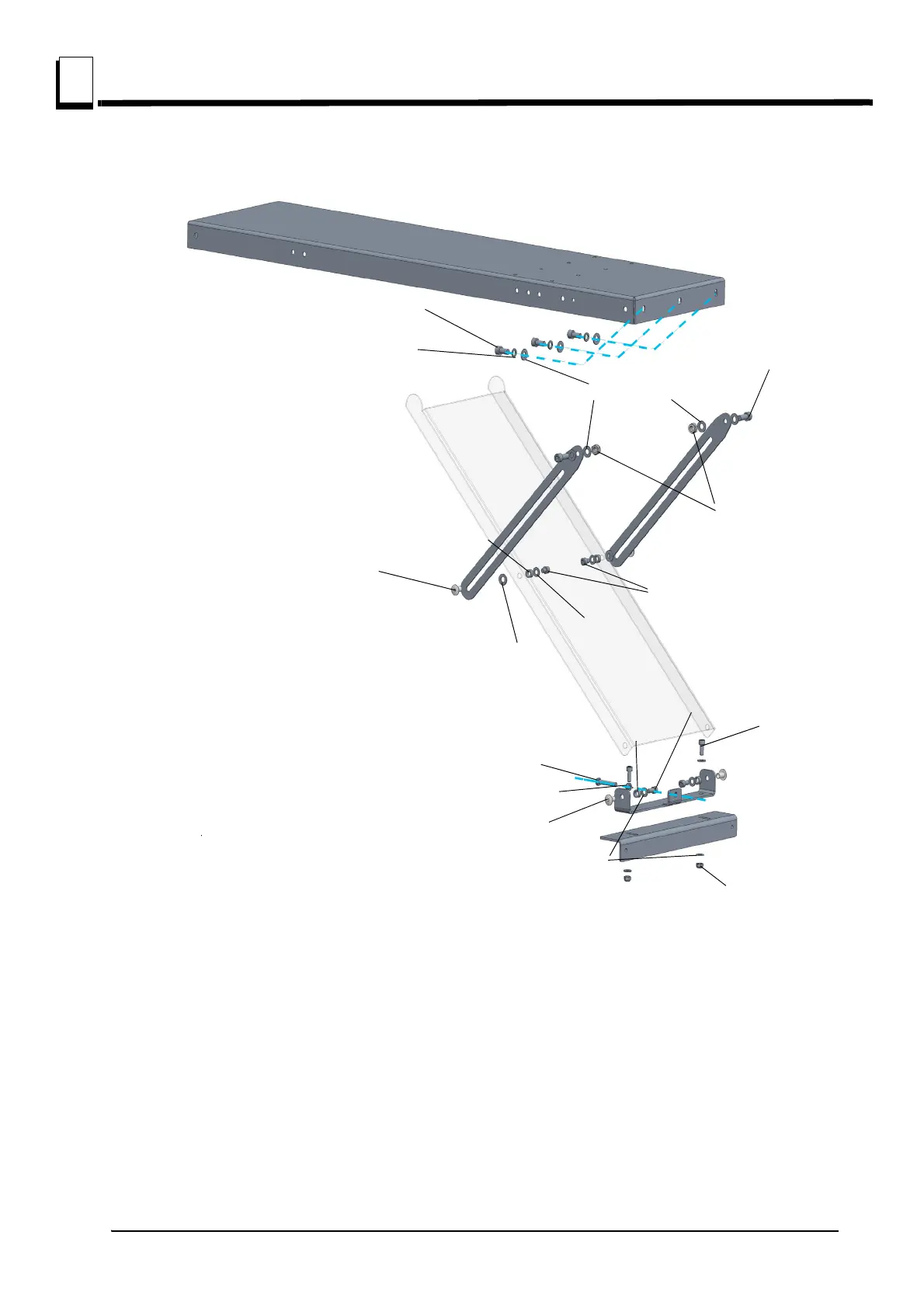

See figure 3-5.
FIG. 3-5
M10x20 Allen Screw
10,2 Spring Washer
10,5 Flat Washer
M10x25 Allen Screw
M10 Lock Nut
M8, Allen Ring Nut
M8x10 Allen Screw
8,4 Flat Washer
Bushing
M8, Allen Ring Nut
Bushing
10,5 Flat Washer
8,4 Flat Washer
M8x16 Allen Screw
M8x20 Allen
Screw
M8 Lock Nut
M8x45 Bolt
M8 Nut
