Drive Belt Tension Adjustment
MAINTENANCE doc021023 4-3
4
(C).
4. Move motor with mounting plate to adjust properly drive belt. Next tighten adjustment bolt and motor
plate mounting bolts. Mount top cutter drive belt cover.
5. Check motor and top cutter pulleys alignment. Both pulleys should be in line to avoid premature drive
belt wear. Loosen set screw on the shaft to move pulleys. After pulleys alignment, recheck the belt
tension.
4.4.2 Side cutter drive belt tension adjustment

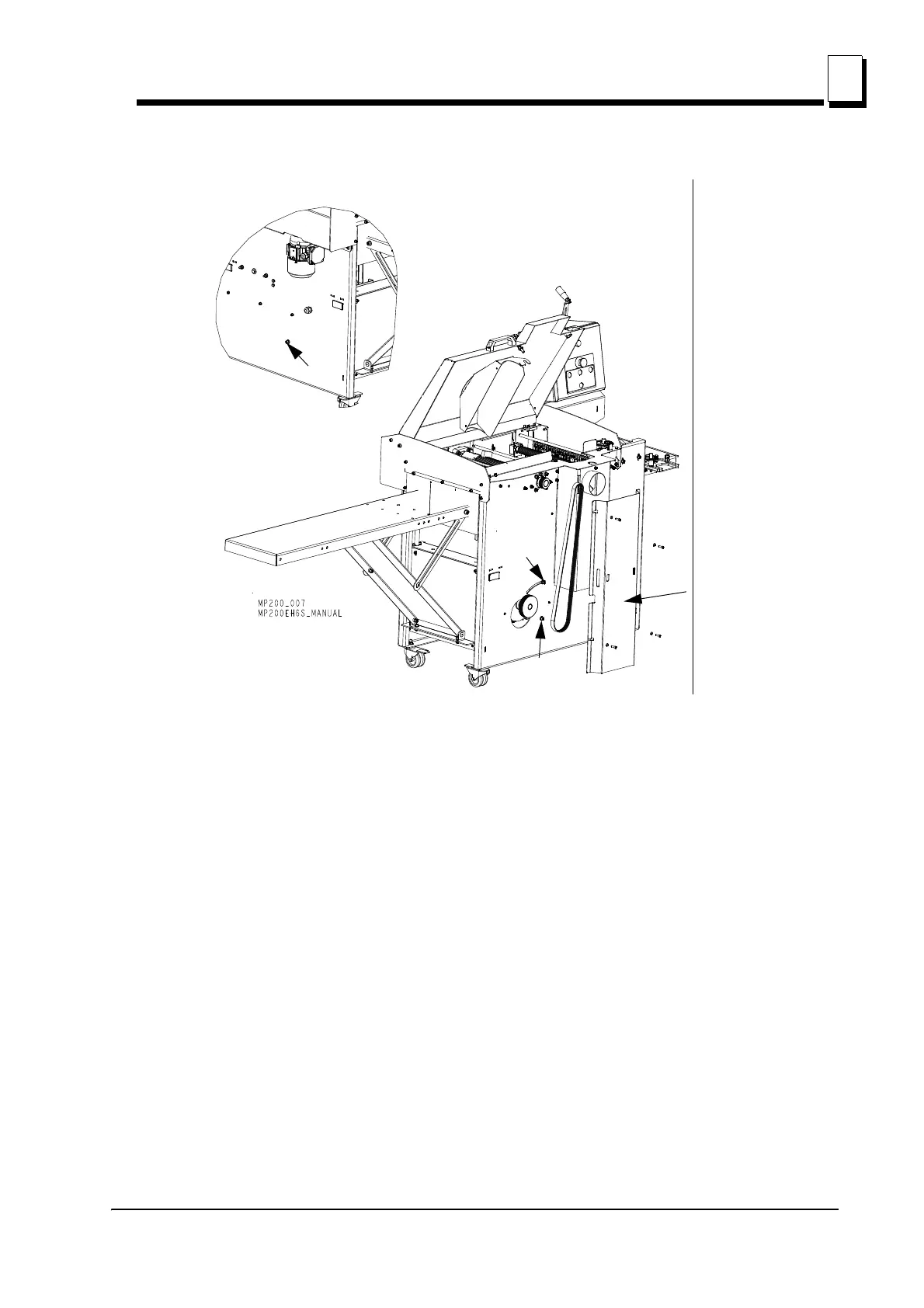

FIG. 4-1
