SETUP & OPERATION
Chain transmission with trapezoidal thread adjustment
EGdoc021023 3-6
3
3.2.3 Chain transmission with trapezoidal thread adjustment
The chain used to raise and lower the table, must not be slack, but needs to be tensioned enough
that teeth mesh correctly.
The chain tension is adjusted with the nut located on the planer/moulder base, under the outfeed
table.
Do not adjust the chain tension, when table is raising or lowering. In this case incorrect chain tension
can mean that chain has disconnected.
3.2.4 Side cutter
WARNING! Before you open the safety doors on the planer, ensure
that the power is switched off and that the cutters are not rotating.
WARNING! Use protective gloves, particularly when you need to
loosen screws that are tightly fastened, or when you are tightening
screws (see safety instructions).

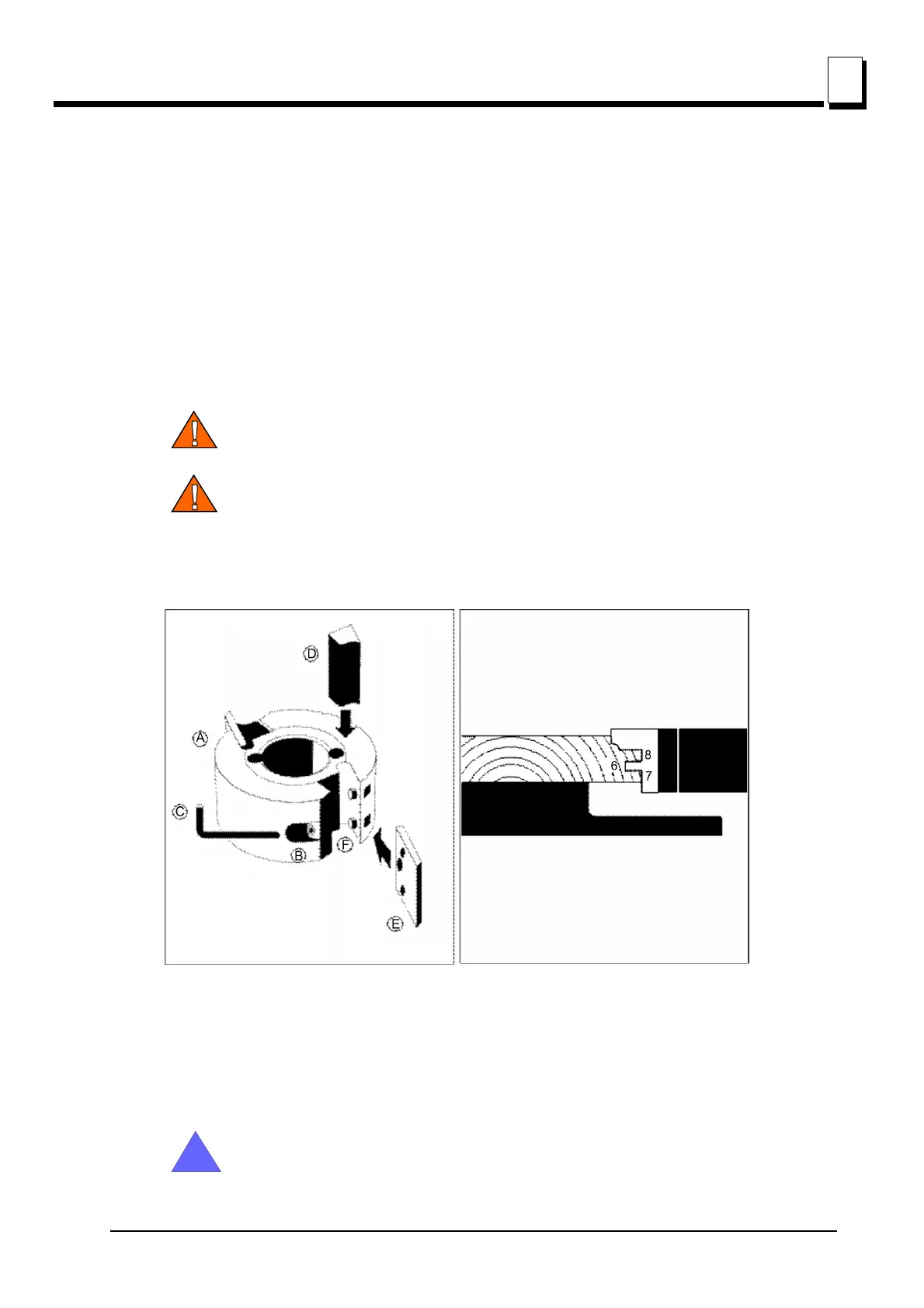

See figure 3-4.
The side cutter is fixed to the planer table with 30 mm diameter spindle, which is a standard
dimension. Planer/moulder is equipped with one universal side cutter with planing knives, which can
be easily replace with molding knives. For the user’s safety, the workpiece is fed towards the knives
rotation direction. Lock nut and side cutter spindle have to be left-hand threaded.
IMPORTANT! Side cutter lock nut has to be left-hand threaded.
FIG. 3-4
