Optional Table installation from the outfeed side.
3
3-13 EGdoc021023
3.2.7 Optional Table installation from the outfeed side.
1. Mount the optional table to the moulder from the outfeed side. Do not tighten the screws. Also table
brackets mounting bolts should be loosened.
See figure 3-7.
2. Set the optional table at the same level as cast iron table of the moulder, next use the spirit level and
adjustment bolt to level the optional table. Tighten the M10x20 and M8x20 allen screws.

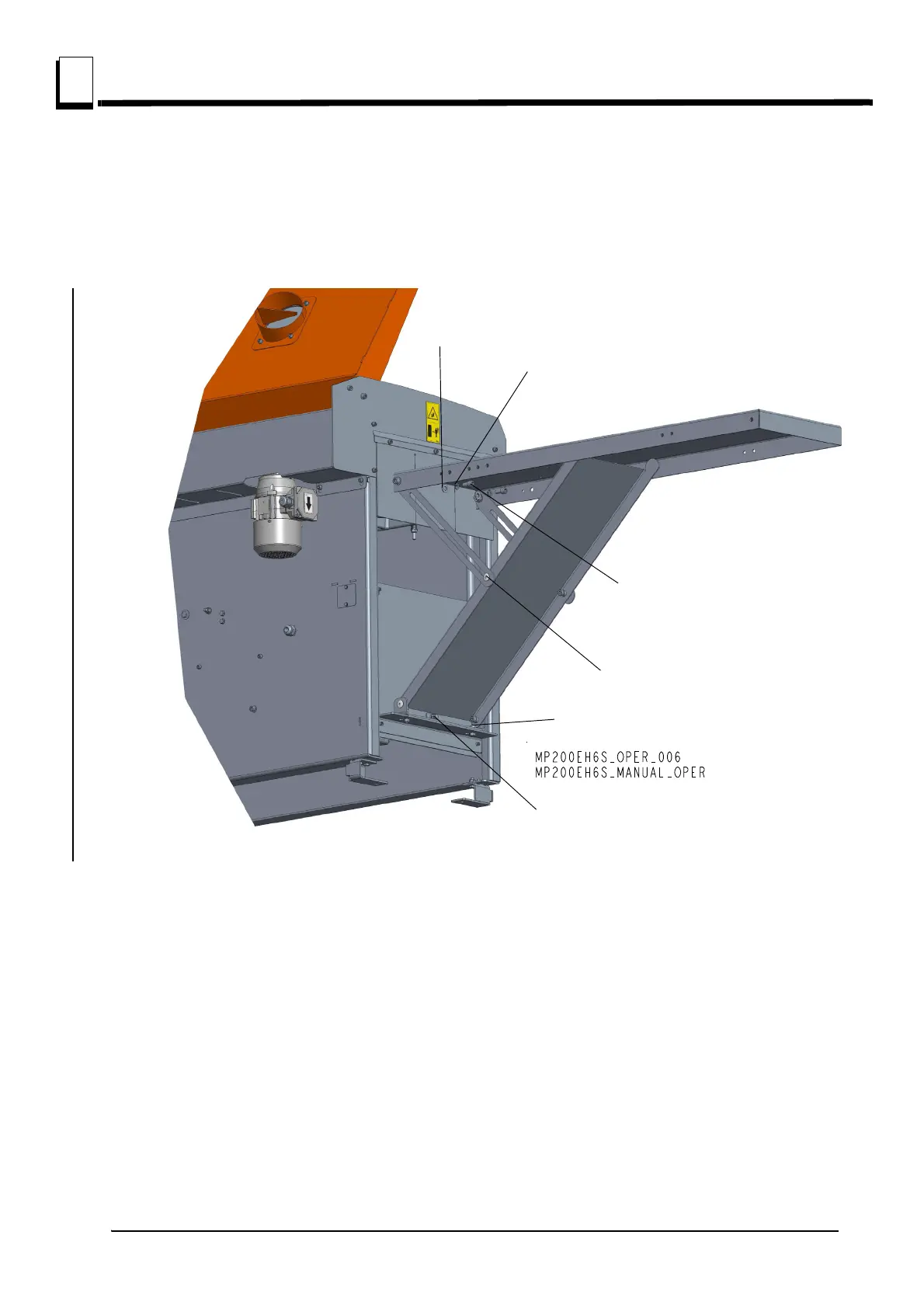

FIG. 3-7
10,5 Flat Washer
M8x20 Allen Screw
M10x20 Allen Screw
10,2 Spring Washer
Table Brackets
Mounting Bolts
Adjustment Bolt
