Optional Table installation from the infeed side.
3
3-15 EGdoc021023
2. Mount the optional infeed table. Mount the table bracket to the third hole, as shown on the detail “A”.
Do not tighten the screws.
See figure 3-9.
3. Set the optional table at the same level as the cast iron table of the moulder. Next use the spirit level
and adjustment bolt to level the optional table. Tighten all screws and bolts.

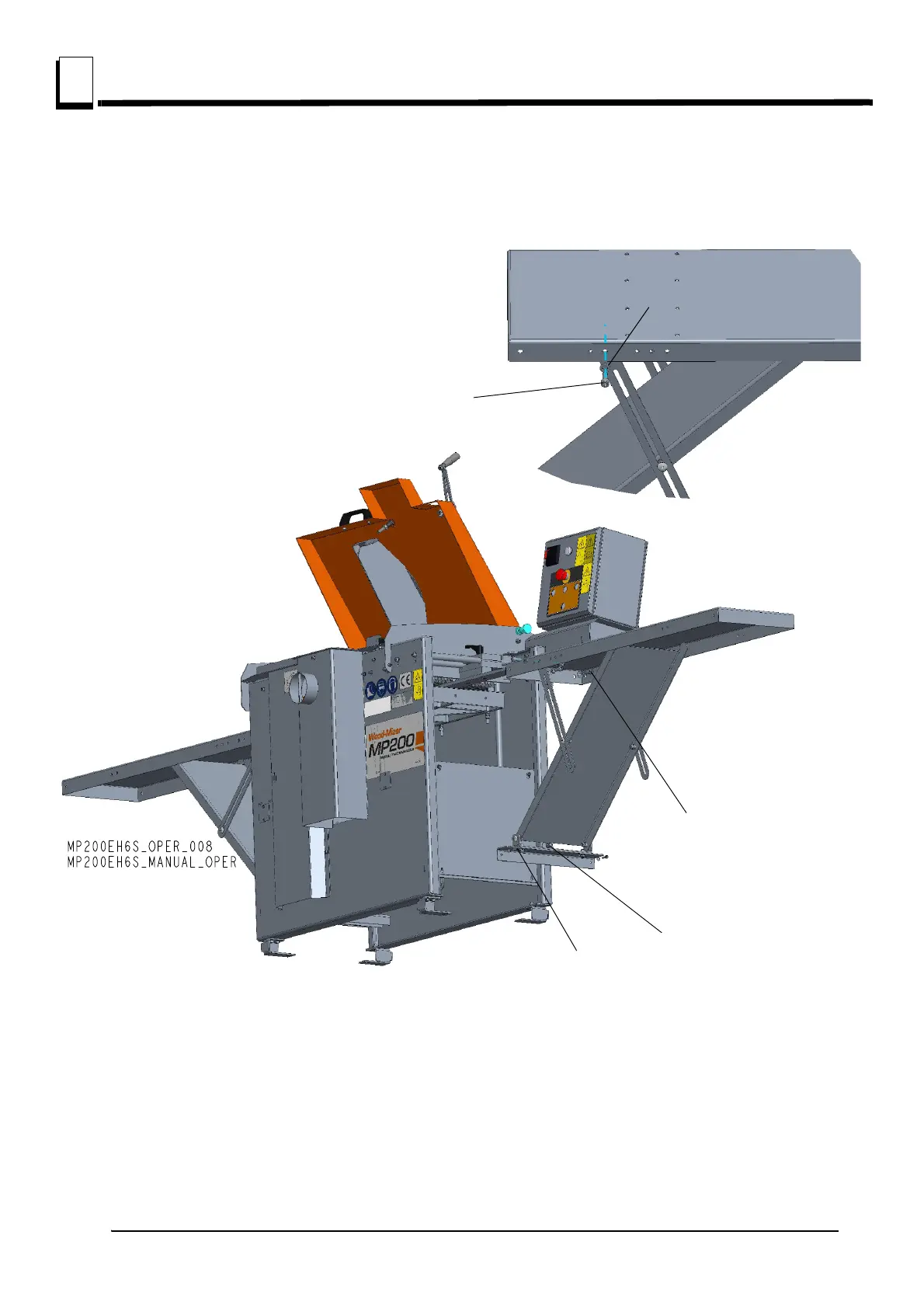

FIG. 3-9
10,5 Flat Washer
M6x20 Allen Screw
Table Bracket Mounting
Bolts
(M10x25Allen Screw)
Table Mounting Bolts
(M10x20 Allen Screws
with spring and flat
washers and lock
nuts)
Adjustment Bolt
To Next Page
