Side cutter fence setup
3
3-35 doc050624 Setup
Side cutter fence setup
The right side cutter has two fences: the first and second side cutter fence. They are both
attached in similar fashion to the cast iron table.
See Figure 3-26. Here are their locations in the machine:
SETTING THE SECOND SIDE CUTTER FENCE
The second side cutter fence is located on the far side of the stationary cutter (see figure
3-26
). It is set back away from the path of the wood initially.
Pass a test board through the machine and then stop it in place.
Bring the second side cutter fence up to the wood and bolt it firmly against the wood.

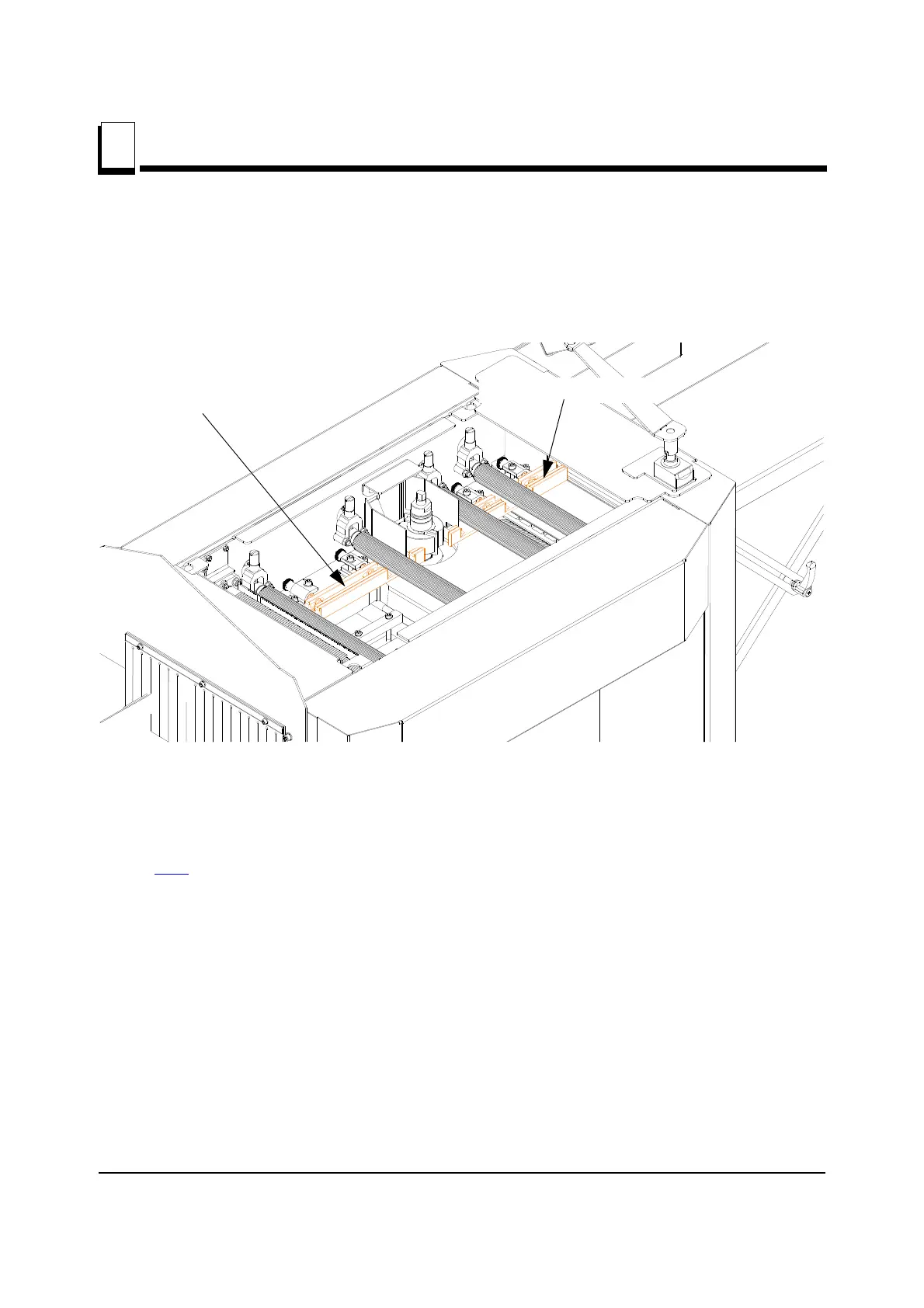

FIG. 3-26
First side cutter fence
Second side cutter fence
