Manual 37240C GCP-30 Series - Genset Control
Operation
In order to be able to configure, the following steps have to be performed at the GCP:
Enter code
0000
1. Code level 2 has to be entered at the GCP.
Direct para.
YES
2. Direct configuration has to be enabled.
If the GCP is equipped with a CAN bus (X1/X5), the configuration via RS-232 is only possible with stopped en-
gine. The reason for this is, that the unit changes to CAN bus automatically when detecting firing speed and, as a
result, the interface RS-232 (RJ45) will be cut off. In this case, the configuration screen "Direct para." is sup-
pressed. It has to be noted, that the code level expires when disconnecting the power supply at the GCP and with
that, the parameter "Direct para." returns to NO. It has to be set to YES again.
Setting in LeoPC1
LeoPC1 will be installed according to the manual.

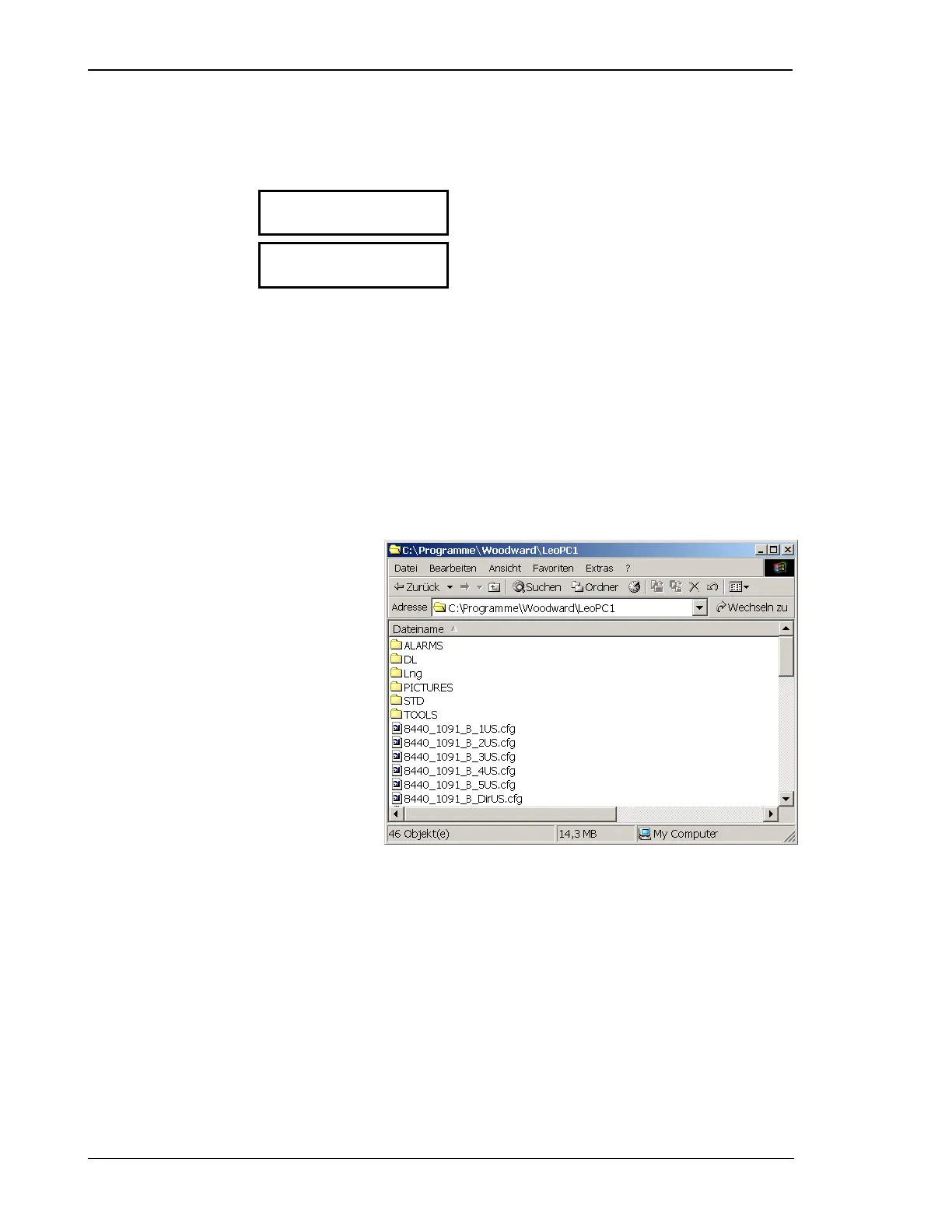

The configuration files of the device are copied to the PC. With this, the .cfg files are copied to the main path and
the other files are copied to the intended folders.
The .cfg file with the contraction "Dir" in the file name is to be used for direct configuration via LeoPC1.
Page 6/38 © Woodward
