Manual 37240C GCP-30 Series - Genset Control
Chapter 2.
Applications Interfaces

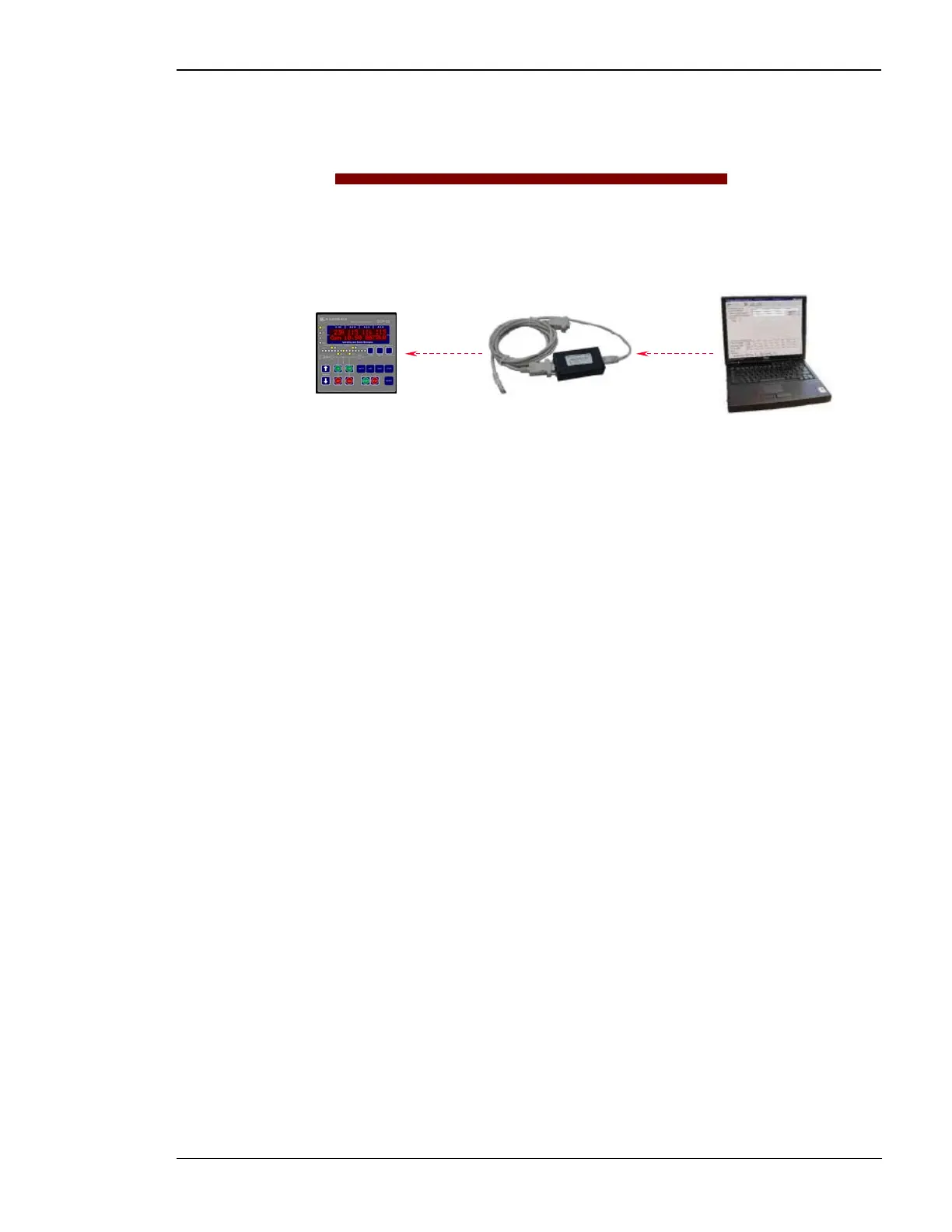

Configuration via RS-232
≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡
Configuration wire
Configuration wire
with galvanic isolation (black box)
with galvanic isolation (black box)
DPC
DPC
-
-
1 P/N 5417
1 P/N 5417
-
-
557
557
Laptop
Laptop
with Windows operation system
with Windows operation system
98SE,
98SE,
NT, ME, 2000, XP
NT, ME, 2000, XP
LeoPC1 3.1 or higher
LeoPC1 3.1 or higher
confi
g
uration
configuration
p
ossible
possible
Control
Control
RJ45 socket
RJ45 socket
edgewise
edgewise
RS
RS
-
-
232
232
RS
RS
-
-
232
232
COM1
COM1
Function
Woodward provides an interface cable and an application software to be able to configure the GCP comfortably
with a PC or laptop. The black box isolates the signals galvanically and must to be used absolutely. Otherwise,
possible potential shifts may damage the devices involved.
Different applications can be performed using the software LeoPC1. These applications include:
• Configuration
• Read out event logger
• Load language
• Transfer standard values to and from the harddrive
Preconditions
• GCP with RJ45 jack (software version 3.X and higher)
• DPC-1 interface set (DPC-1 P/N 5417-557)
• PC or laptop with Windows OS 98SE, NT, ME, 2000, XP and free Com port (USB to COM adapter
also possible)
• Application software LeoPC1 version 3.1 or higher
• Configuration file available (*.cfg, *.asm, *.opt,...)
© Woodward Page 5/38
