Items supplied with boiler
6720813171 (2015/04) 11

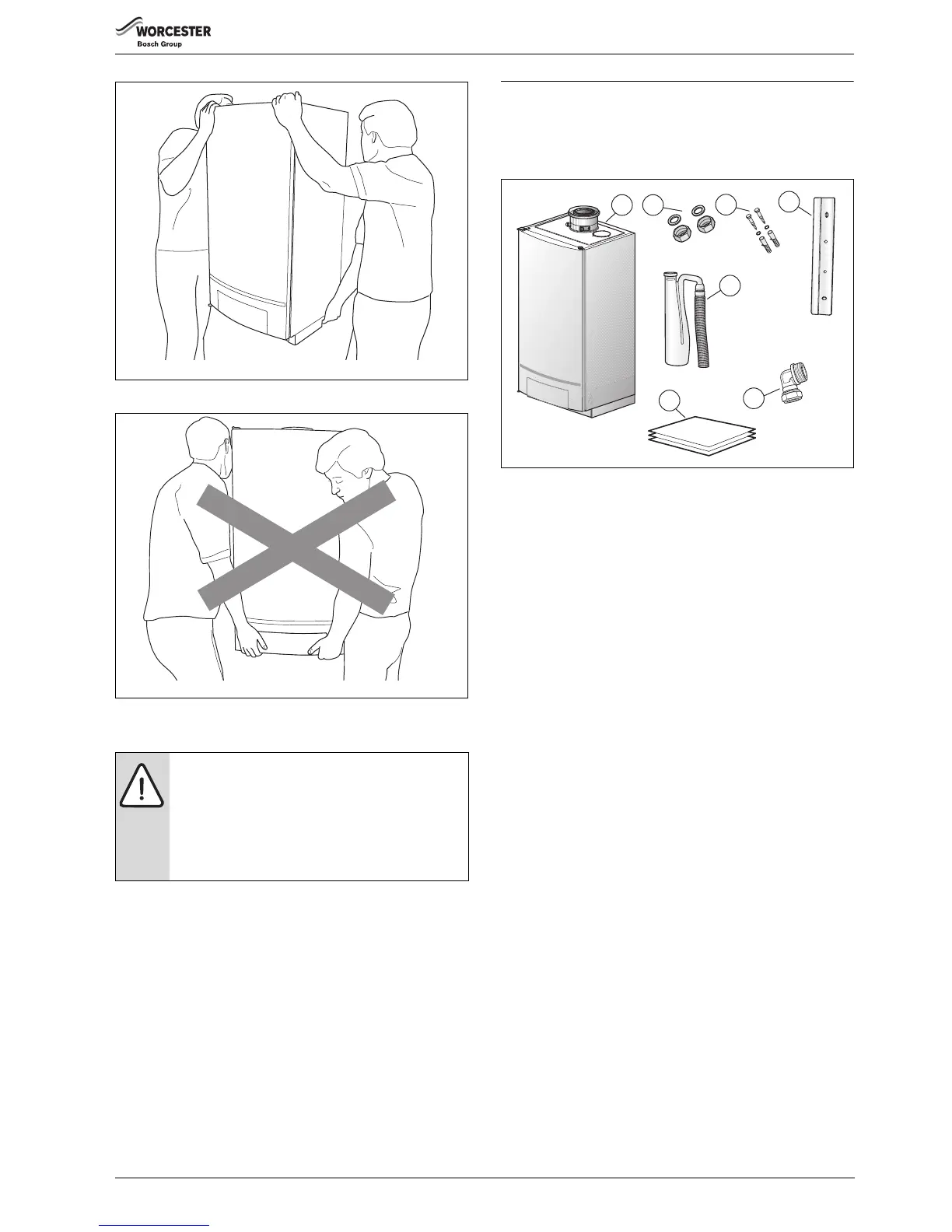

Fig. 3 Lift and carry the boiler correctly
Fig. 4 Incorrect way of lifting and carrying the boiler
5.2 Transporting the boiler with a trolley
▶ Place the boiler in its packaging on the hand truck and secure it with
a strap if necessary.
▶ Transport the boiler to the installation location.
6 Items supplied with boiler
The boiler is delivered factory-assembled.
▶ Check that the packaging is intact upon delivery.
▶ Check that all items have been supplied with the boiler.
Fig. 5 Items supplied with unit
[1] Boiler assembly
[2] Wall bracket
[3] Condensate trap with condensate trap hose
[4] Technical documents set
[5] Flow and return union nuts with sealing rings (2x)
[6] Screws and plugs for wall bracket (2x)
[7] Compression elbow for pressure relief valve in pump group
DANGER: Danger of injury due to improperly secured
boiler.
▶ Use proper transport equipment, such as a trolley
with a securing strap, a stair-climbing hand truck or a
convertible hand truck to transport the boiler.
▶ Secure the boiler on the transportation equipment to
prevent it falling off.
