14 Display information
This section describes how to read operating and fault messages from
the BC10 basic controller and what they mean.
14.1 Removing the control panel from the boiler
To make it easier to use the buttons on the control panel when the boiler
door is open and to make it easier to read out the values in the display,
you can disassemble the control panel from the boiler door and hang it
from the boiler frame.
▶ Open the boiler door ( fig. 38 “Opening the boiler door”, page 26).
▶ Undo the 2 screws of the control panel at the back of the boiler door
[1].

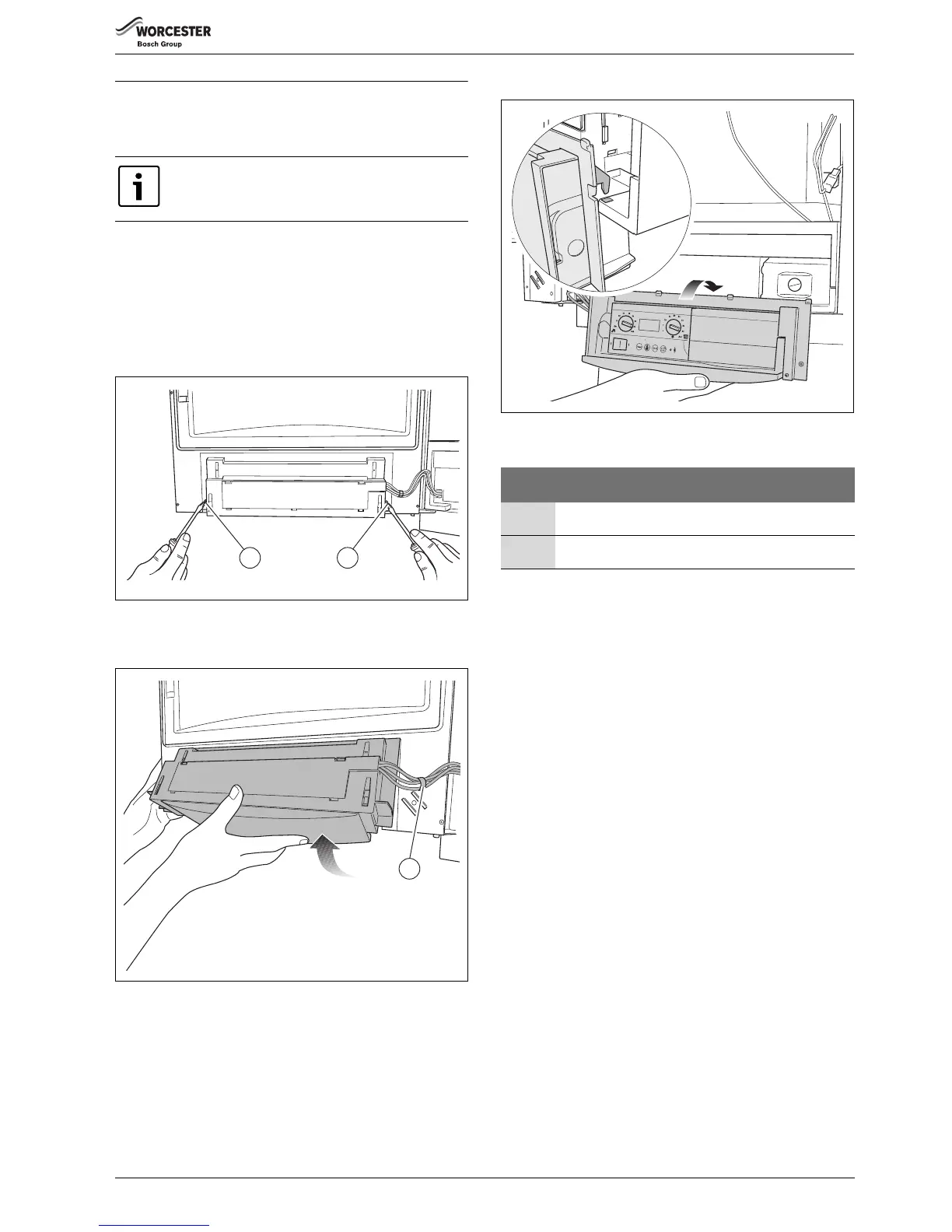

Fig. 119 Undoing the screws
▶ Undo the cable tie [1].
▶ Remove the control panel.
Fig. 120 Removing the control panel
[1] Cable tie
▶ Use the 2 hooks to hang the control panel from the boiler.
Fig. 121 Hanging the control panel from the boiler frame
14.2 Display readings
For exact troubleshooting instructions please refer to
the boiler service instructions. You may also contact
Worcester technical support (0330 123 3366)
Display
reading Key to display reading Unit Range
[\/2/4| Current CH flow temperature. °C [\/\/0| – [1/3/0|
[p/1.6| Current system pressure. bar [p/0.0| – [p/4.0|
Table 22 Display readings
