Worcester GREENSTAR HIGHFLOW 440CDI ERP Installation, Commissioning And Servicing Instructions

APPLIANCE INFORMATION
Greenstar Highflow CDi
ErP
- 6720818077 (2016/04)6
2 APPLIANCE INFORMATION
2.1 General information
BOILER FEATURES AND CHECKLIST
• Pre-wired and pre-plumbed
• Galvanised steel inner frame
• Digital control system
• Sense II Intelligent controls
• Automatic ignition
• Direct burner ignition electrodes
• Built-in frost protection
• Built-in fault finding diagnostics
• Modulating automatic gas valve
• Combustion air fan with speed regulator
• CH temperature sensor and control
• Pump anti-seizure protection
• Flue gas temperature sensor
• Condensate trap and pump
• DHW flow sensor and temperature control
• Plate type DHW heat exchanger
STANDARD PACKAGE:

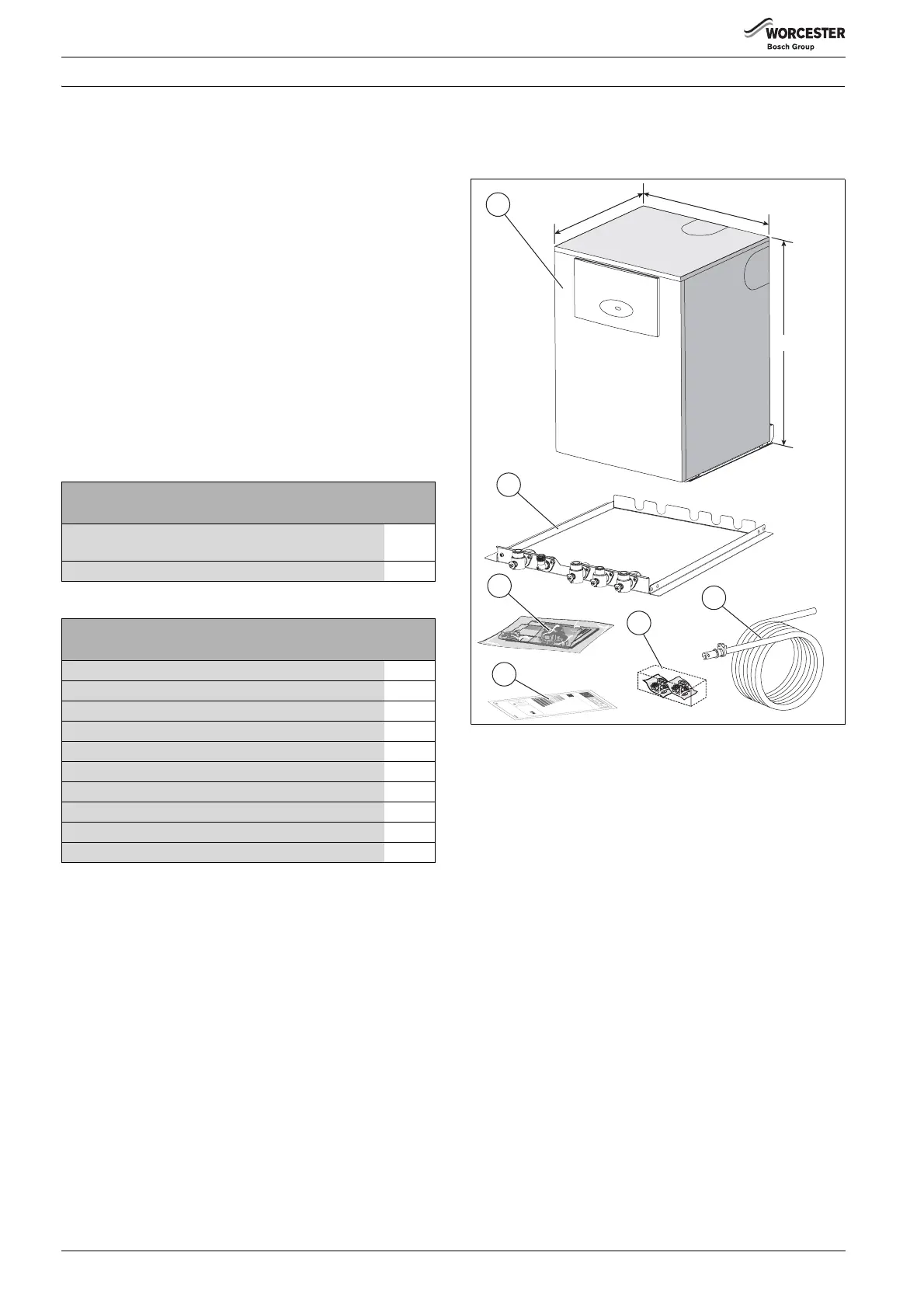

Fig. 1 Standard package
[1] Floor standing gas fired combination boiler for central heating
and domestic hot water.
[2] Mounting frame complete with pre-plumbing manifold assembly.
[3] Literature pack.
[4] Hardware pack.
[5] Condensate waste pipe and non-return valve.
[6] ErP energy label
CHECK LIST
- LITERATURE PACK:
Qty.
Greenstar 440CDi
ErP
& 550CDi
ErP
Installation,
Commissioning and Servicing Instructions
1
Users Instructions 1
Table 4 Literature pack - checklist
CHECK LIST
- HARDWARE PACK:
Qty.
Sealing Pack: 1
- Compression Nut 22mm 5
- Compression Ring 22mm 5
- Seal 23.9 x 17.2 x 1.5 4
- Bonded Washer 1
Hose terminal connector 1
Condensate outlet adapter 1
Condensate hose clips 4
Condensate hose clip 1
Sheet metal screw 1
Table 5 Installation pack - checklist
600
m
m
6
0
0
m
m
6720648665-01.2O
850mm
1
2
5
4
3
6

Worcester GREENSTAR HIGHFLOW 440CDI ERP Specifications

General

Model	Greenstar Highflow 440CDi ErP
Category	Boiler
Type	Combi
ErP Rating	A
Hot Water Flow Rate	20 l/min
Fuel Type	Natural Gas
Gas Type	Natural Gas
Warranty	5 years
Mounting	Wall Mounted
