Worcester Greenstar Ri - Plumbing Manifold; Heating System and Gas Connections

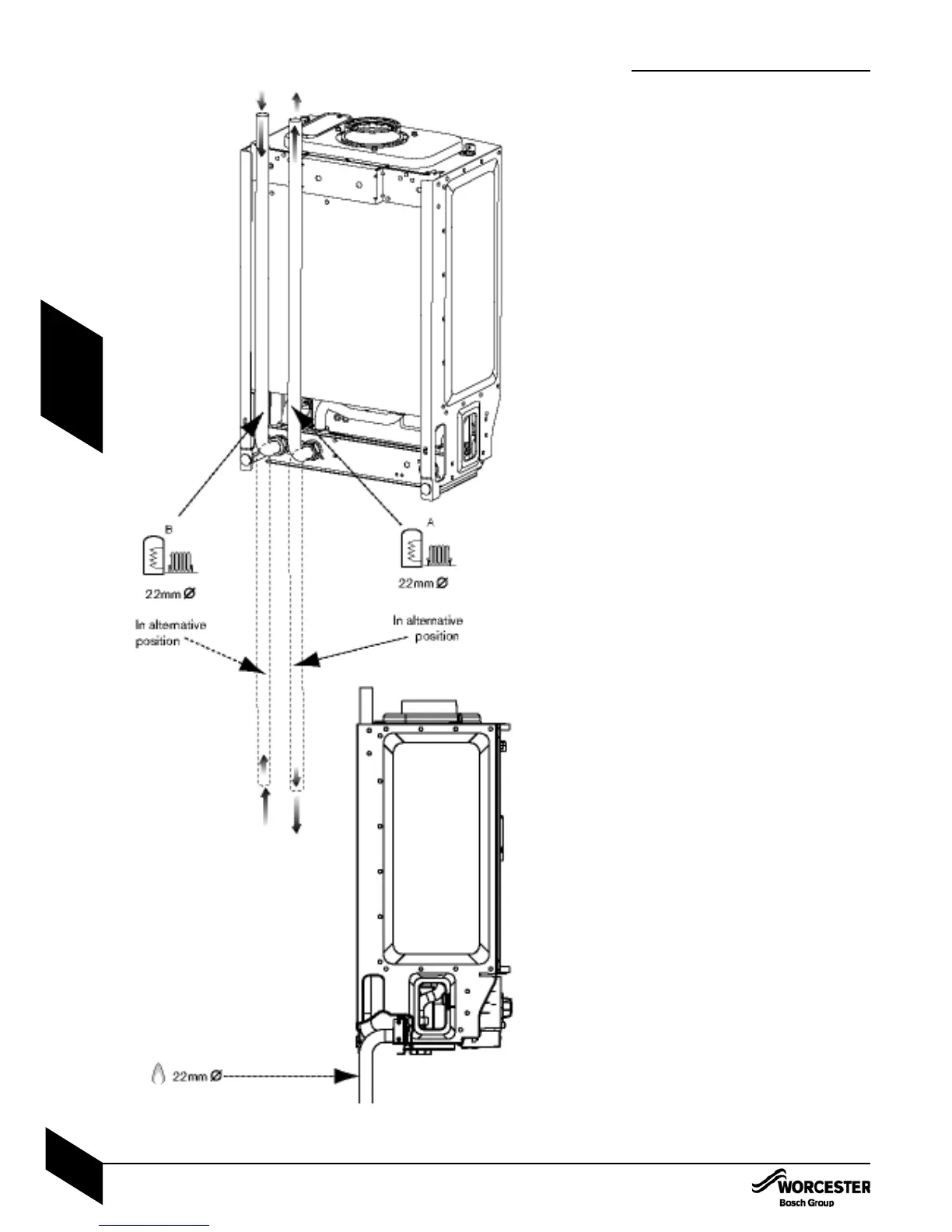

PLUMBING MANIFOLD
CONNECTIONS:
Heating System: 22mm compression fittings*
Gas: 22mm
* Use the 22mm copper pipes provided with
the appliance.
Use the fittings supplied in the Lit/Hardware
pack.
• If the flow and return pipes are to be run
behind the appliance it maybe an advantage
to connect the pipes before hanging on the
wall especially if space is limited.
*
*
Return
Flow
Return
Flow
PLUMBING MANIFOLD
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER BOSCH GREENSTAR Ri
8 716 109 699a (05/05)
13
PRE -
INSTALLATION
