Worcester Greenstar Ri - Condensate, Gas & Water Connections; Condensate Pipe Connection

CONDENSATE CONNECTION:
Never terminate or discharge into any open
source, including; sink, bath, shower, bidet,
toilet etc.
Note: any external condensate pipework
should be protected with weather resistant
insulation to help prevent freezing.
• Ensure that the condensate drain is 22mm
diameter plastic pipe. It must fall at least
50mm per metre towards the outlet.

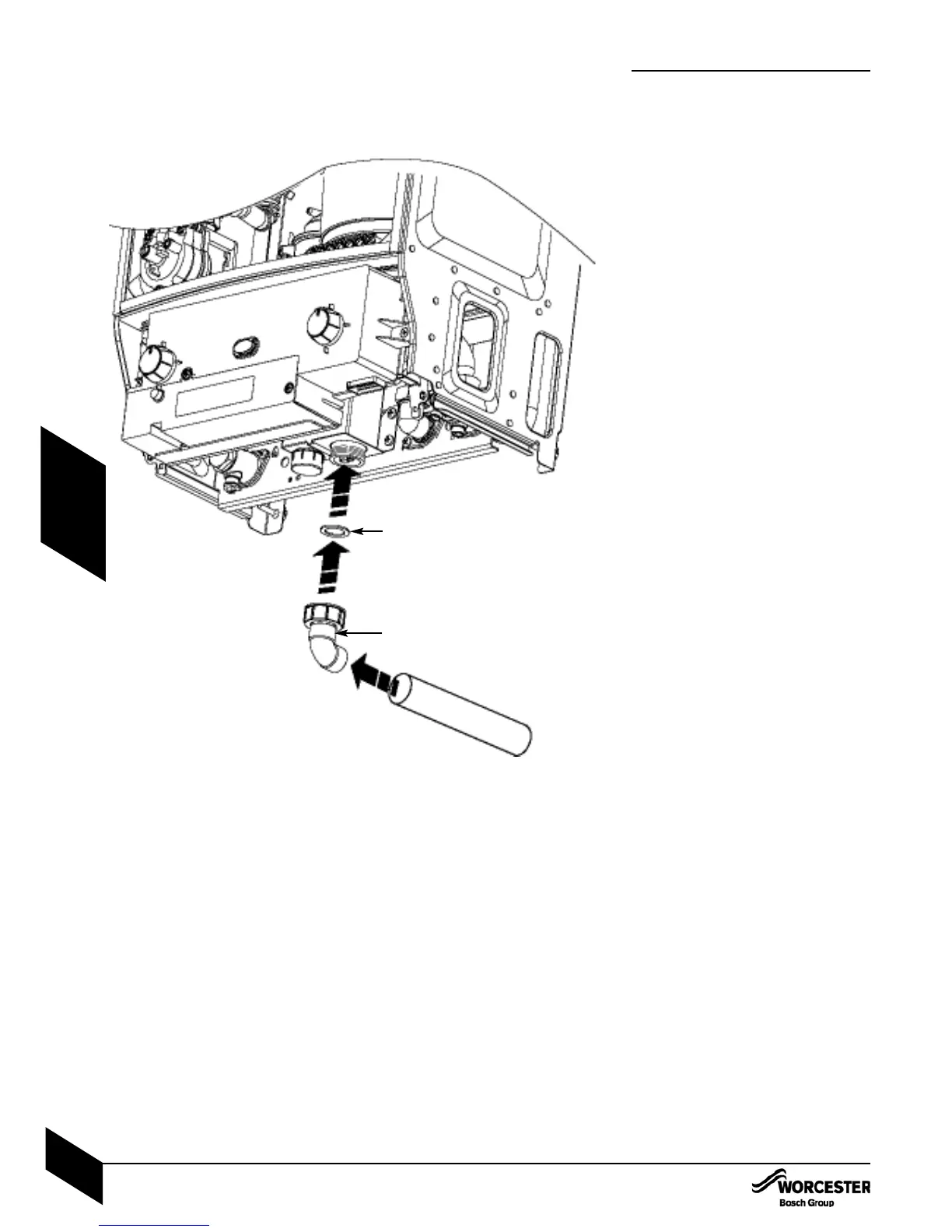

• An adapter in 22mm pipe is contained in the
fitting pack (A) along with sealing washer (B).
CONDENSATE, GAS & WATER
CONNECTIONS
A
B
CONDENSATE, GAS & WATER
CONNECTIONS
INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER BOSCH GREENSTAR Ri
