OUTER CASE REMOVAL

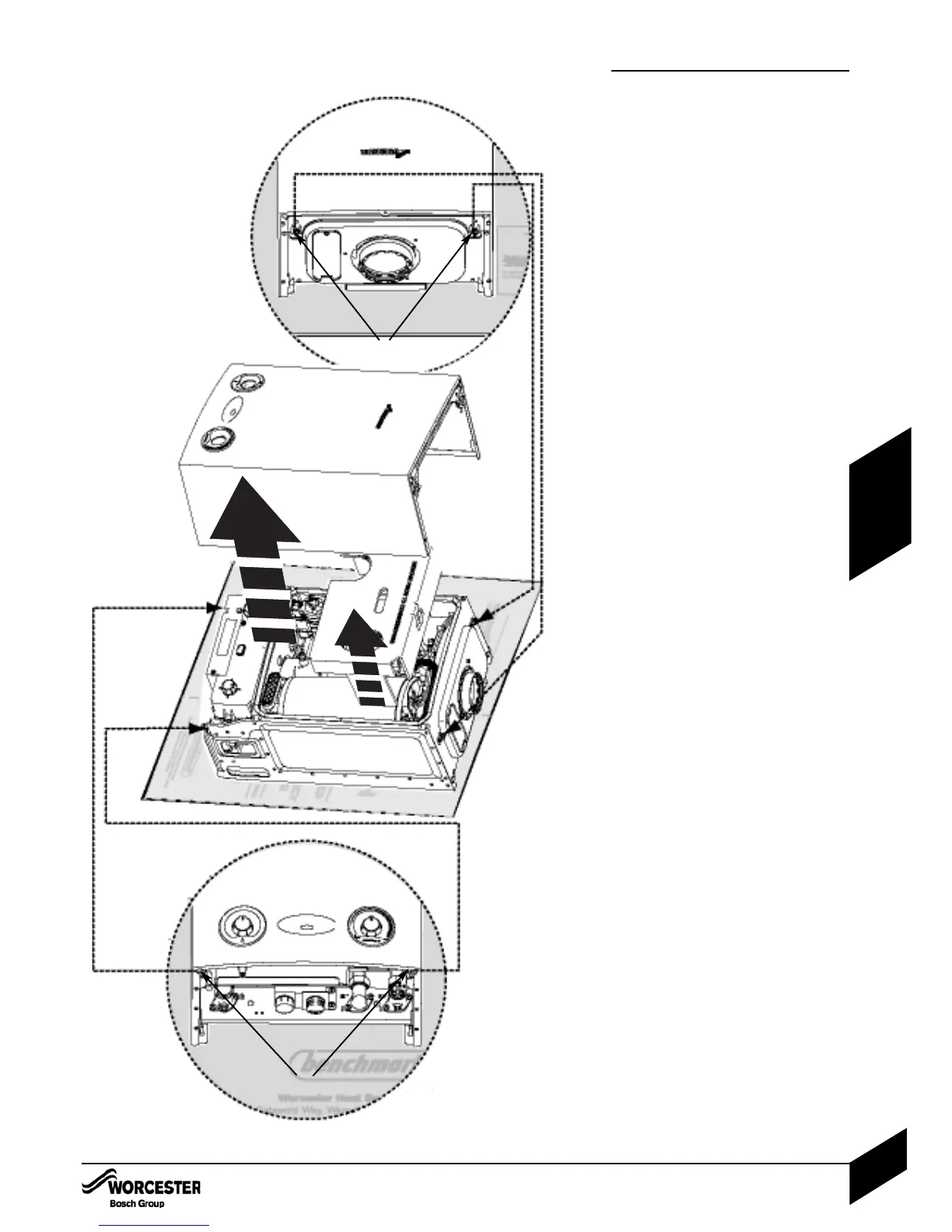

REMOVING OUTER CASE
1. Undo and remove 2 screws (A) securing
boiler casing at the top of the appliance.
2. Undo the 2 captive screws (B) securing
boiler casing at the bottom of the appliance.
3. Pull case upwards.
4. Remove cardboard packing piece from
appliance.
 With the outer case removed the
appliance is suitable for a 1 man lift (<25kg).
