Page 29

4.1.2 Rotorcase Removal

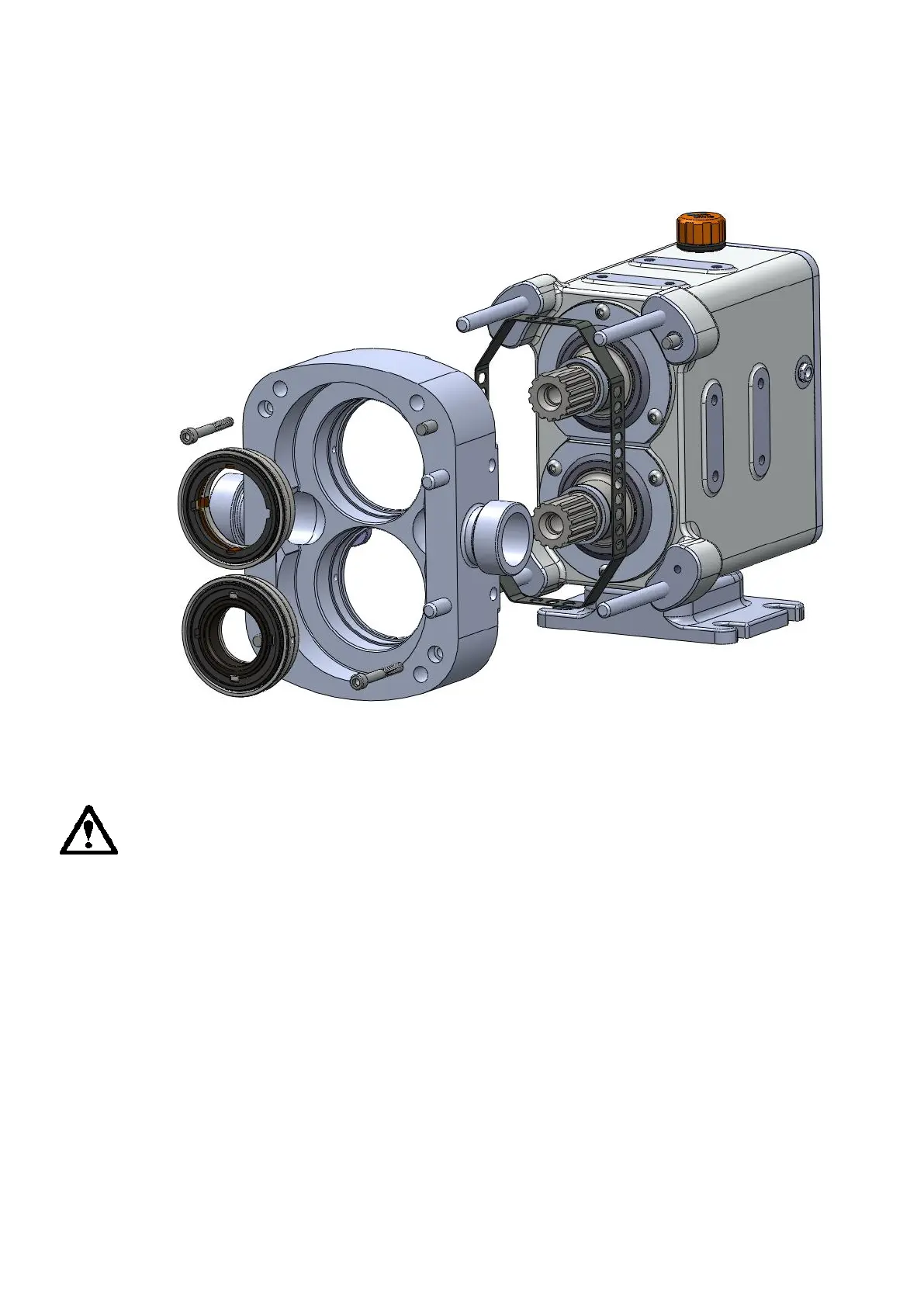

Fig 16

• Remove the 2 Seal Housings making sure that the static face is not

damaged.

• Remove the 2 rotorcase retaining screws and then remove the rotorcase.

• Remove the guard.
