Wright Flow Technologies Revolution R0150X - Final Assembly Size 6

Page 41
4.2.7 Final assembly Size 6 & 7.

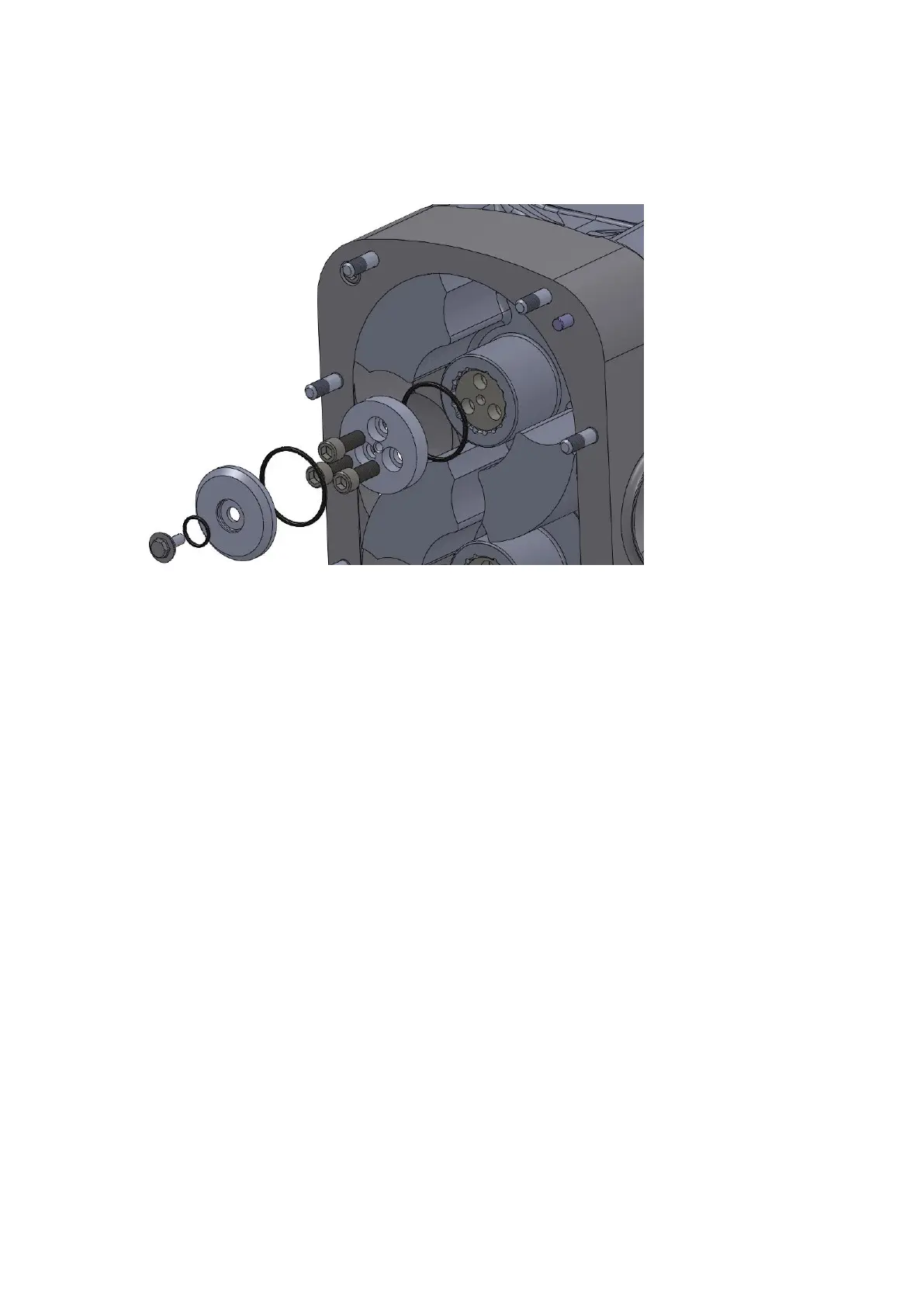

Fig 38
• Install pump seals before final assembly see section 5
• Install the rotor retainer o-ring, rotor retainer and the 3 Socket head cap
screws - set the torque. See section 6.2
• Install the rotor retainer cap o-ring and the rotor retainer cap. Install the
rotor retainer o-ring and retainer – set the torque See section 6.2.
The rotorcase studs need to be retained using a thread locking compound
adhesive, Loctite 270 or similar.
• Install the front cover o-ring, front cover and secure with the dome nuts.
