Page 35
4.2.2 Gearbox.

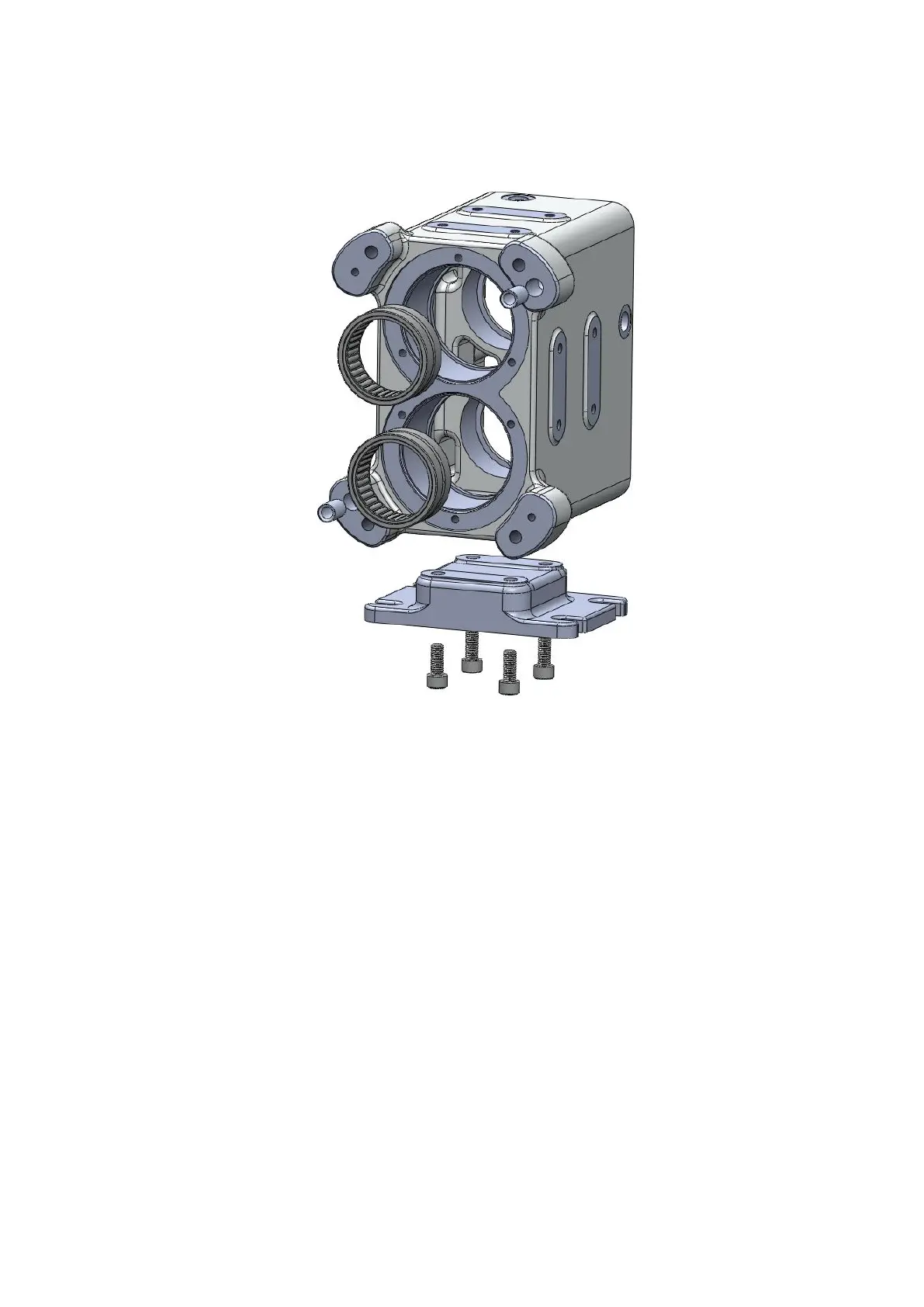

Fig 24
• Install the foot and secure with the screws.
The foot screws need to be retained using a thread locking compound
adhesive, Loctite 270 or similar.
• Press in the rear outer shells of the needle roller bearings.
• Press in the dowel bushes.
The dowel bushes need to be retained using a retaining compound
adhesive, Loctite 638 or similar.
