4.2.6 Front Clearance.

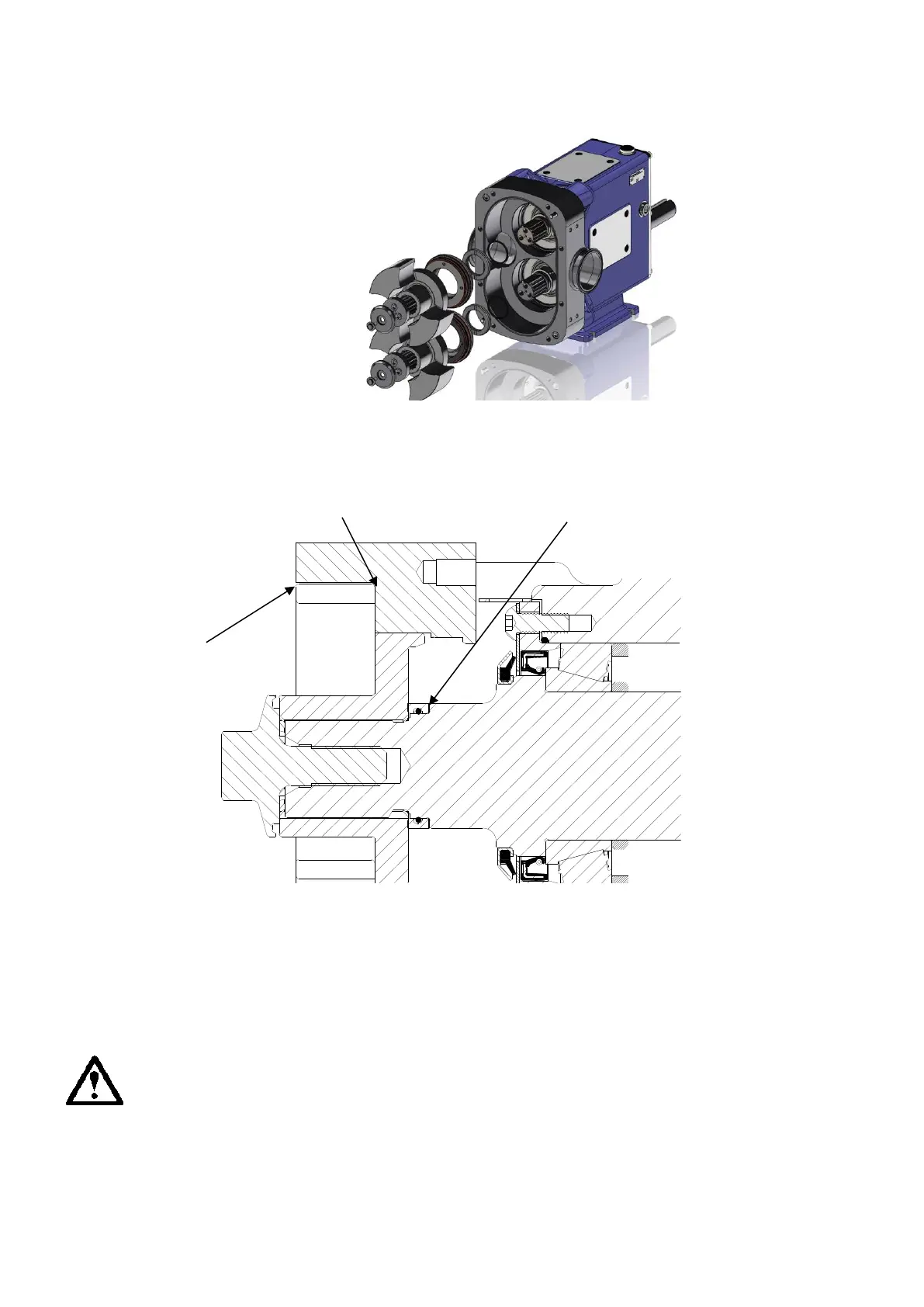

Fig 36
• Install the shims, front setting ring, rotor, rotor retainer and tighten them up,
see section 6.2 for torque settings.
Fig 37
• Measure the front clearance and rear clearance and use the clearance
chart section 6.1 to see how much shim you need to add / remove from the
shimming point.
• After the front clearances have been set install the o-ring into the setting
ring.
When checking the front and rear clearances secure the rotorcase in place
using washers and nuts on the studs protruding from the gearbox.
After the front clearance has been set check the radial clearances
See section 8.1 for clearance settings.
