Wright Flow Technologies Revolution R0150X - Page 39

Page 39

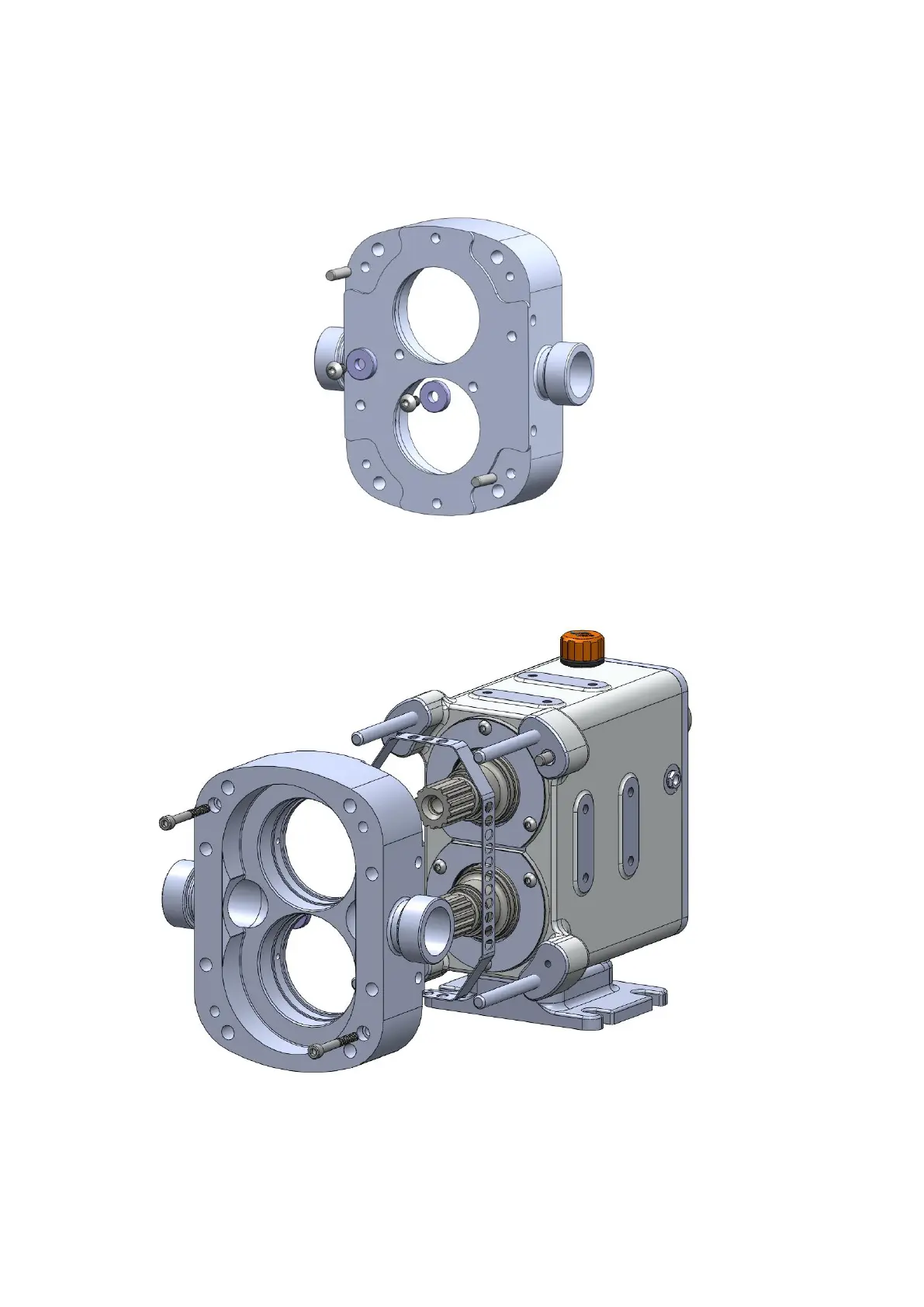

• Install the dowels.
The dowel bushes need to be retained using a retaining compound
adhesive, Loctite 638 or similar.
• Install the guard and rotorcase and secure using the retaining screws
Fig 35
Fig 34
