Page 30
4.1.3 Gearbox Disassembly.

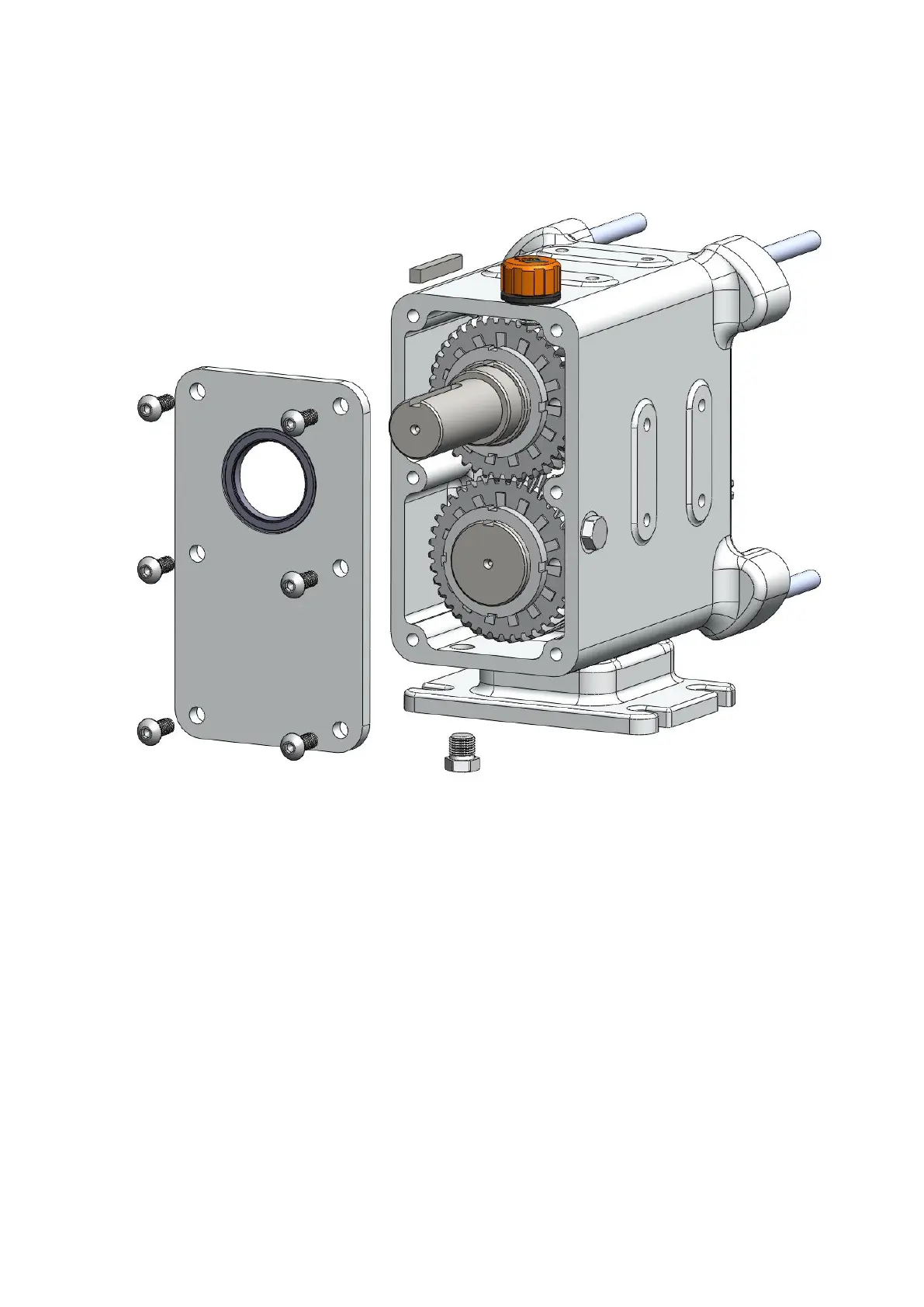

Fig 17
• Make sure the gearbox lubricant has drained by removing the drain plug.
• Remove the drive key.
• Remove the hexagon head bolts and remove the gearbox cover.
