Page 31
4.1.4 Gear removal.

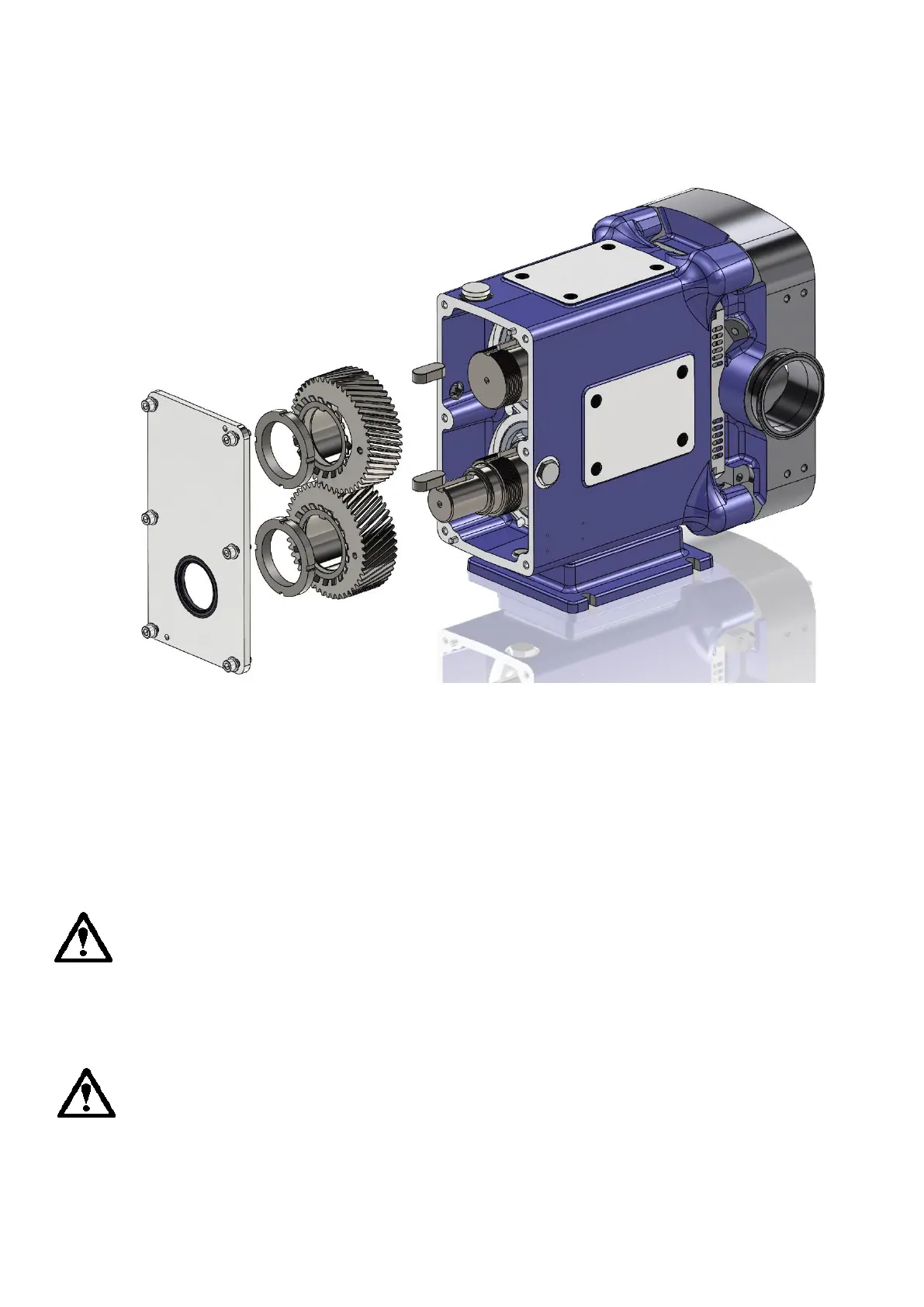

Fig 18
• Remove the lock nuts and tab washers.
• Remove the gears, the 2 threaded holes within the gears can be used to
aid gear removal with a puller tool.
The 2 threaded holes are to be used only in conjunction with gear pullers –
any other use will damage components.
• Remove the gear keys and then remove the gear spacer.
Keep the locknut, tab washer, gear, key, shims and gear spacer in the sets
that they were removed and identify them drive and lay.
