Page 23
3.8.3 Recommended Flush Circulation
3.8.3.1 Frame 6

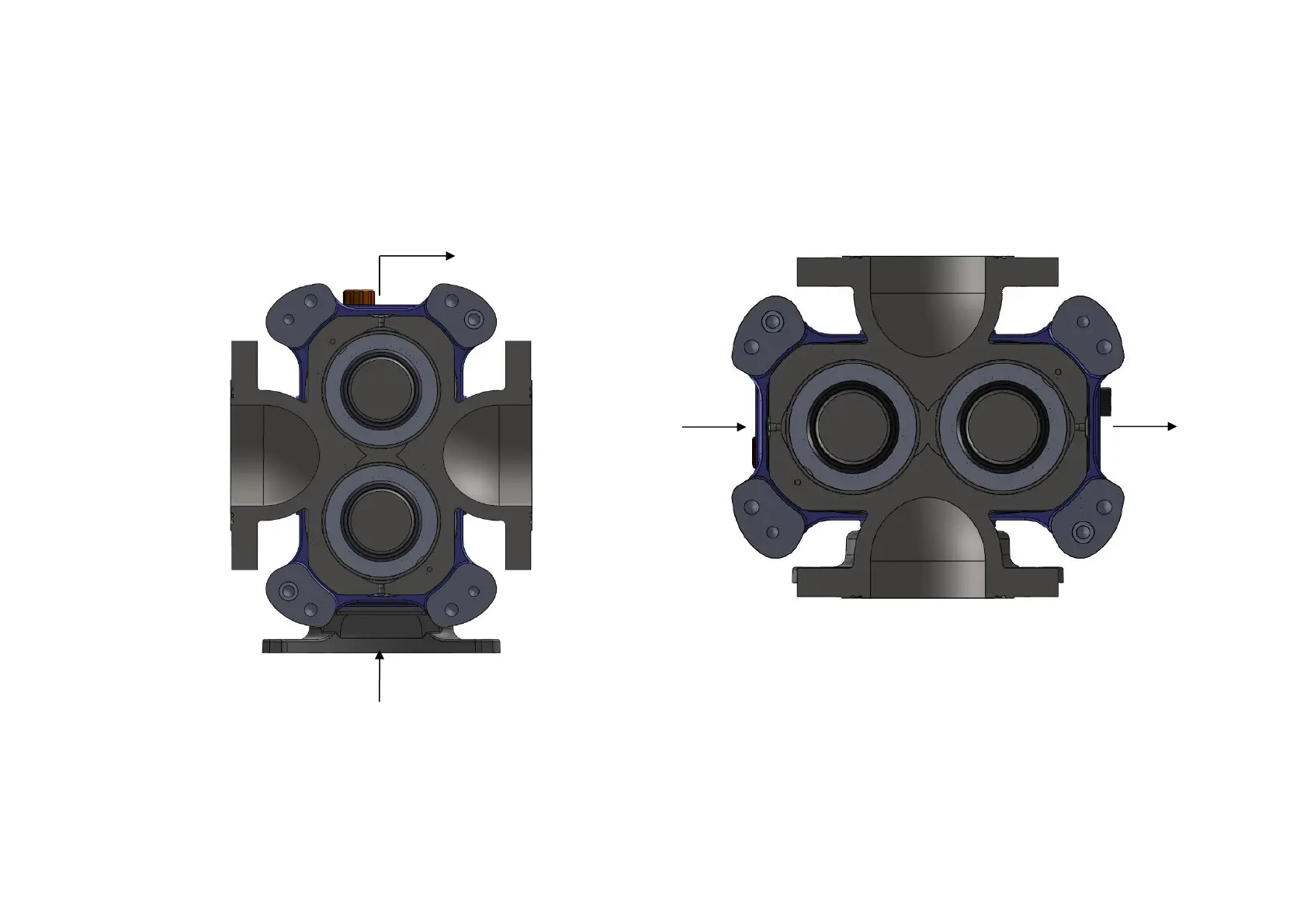

Horizontal Port Straight Flush Horizontal Circular Flush
Note: The liquid supply connections to flushed seals are made using the threaded ports on the sides of the
rotorcase. The pipe work should be arranged to provide an independent flush to each seal.
Flush In
or
Flush In
or Out
Flush In
or Out
Flush Out
or
