4.1.5 Front Spacers and Lip-seals.

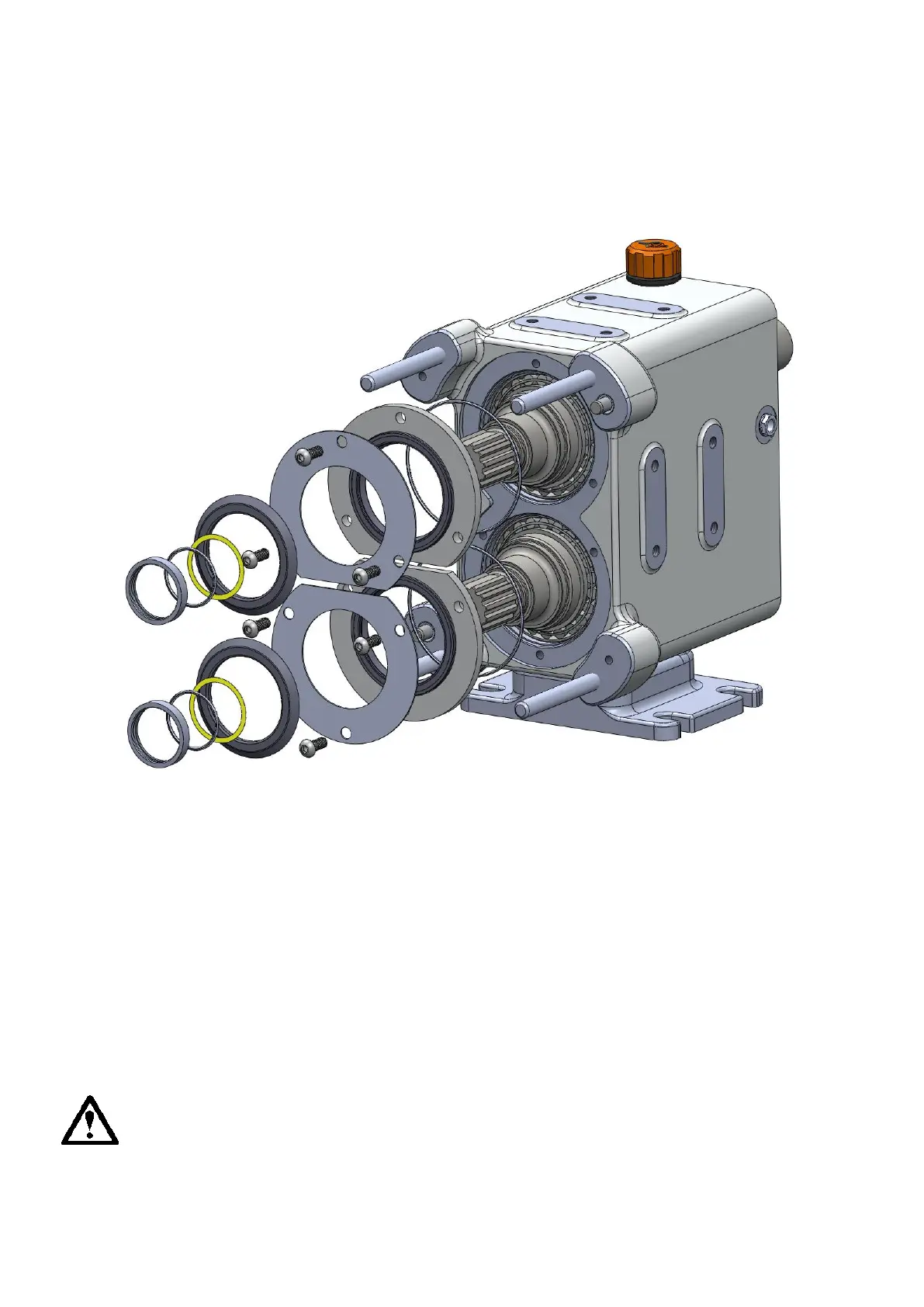

Fig 19
• Remove the front spacer ring, o-ring and shims.
Keep these in the sets that they were removed and identify them drive and
lay.
• Remove the screws holding the lip seal carriers.
• Remove the optional gamma seal, counter face gamma seal, bearing
retainer plate and the o-ring.
At this point the shafts are not held in place so take care when moving the
gearbox.
