Page 48

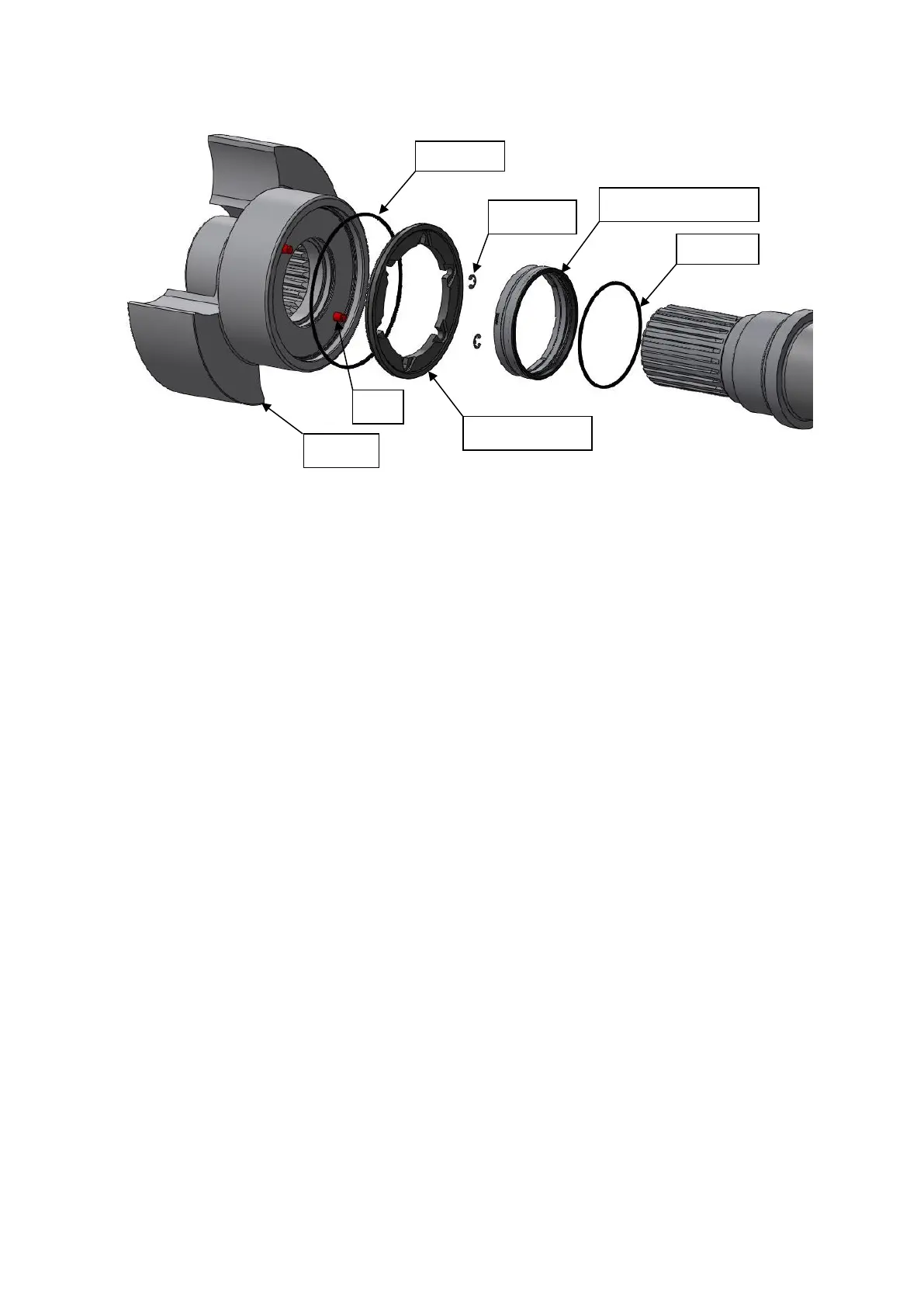

• Install pins into rotor 8mm of the Frame 6 pin should stand out and 12.5 mm of
the Frame 7 pin should stand out
• Install the o-ring into the rotor.
• Install the rotary face into the rotor making sure the pins line up with seal face
slots.
• Install clips onto pins.
• Install oring into secondary face
• Install secondary face over shaft
