wtw LF 170 - Measuring Cells with 8-Pin Plug

LF 170 Installation
83
ba54104e09 11/2010

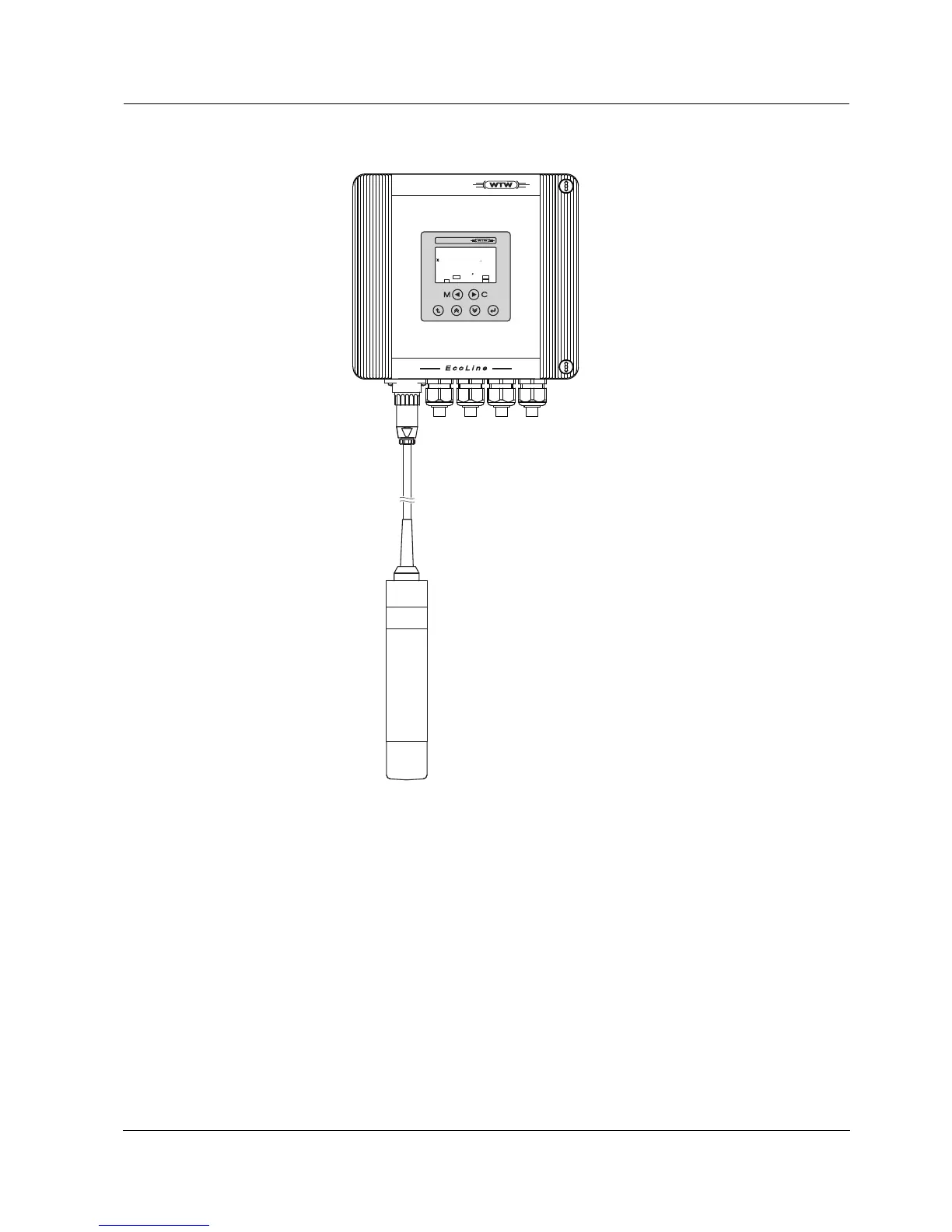

Fig. 3-3 Connection of conductivity measuring cells with plug adapters
3.4.3 Measuring cells with 8-pin plug
This section describes the connection of the following conductivity
measuring cells:
z TetraCon
®
325
z TetraCon
®
325/C
z LR 325/01
z LR 325/001
z TetraCon
®
DU/T (with KKDU 325 connection cable)
z TetraCon
®
DU/TH (with KKDU 325 connection cable)
mg/l
1
1
85
°
C
REL1
5 6
O
LF 170
cm
S/
5
1 5 6
22
nLF AR
Tref20 REL1
°
C
Example: TetraCon
®
700
LF 170
