Installation LF 170
84
ba54104d09 11/2010

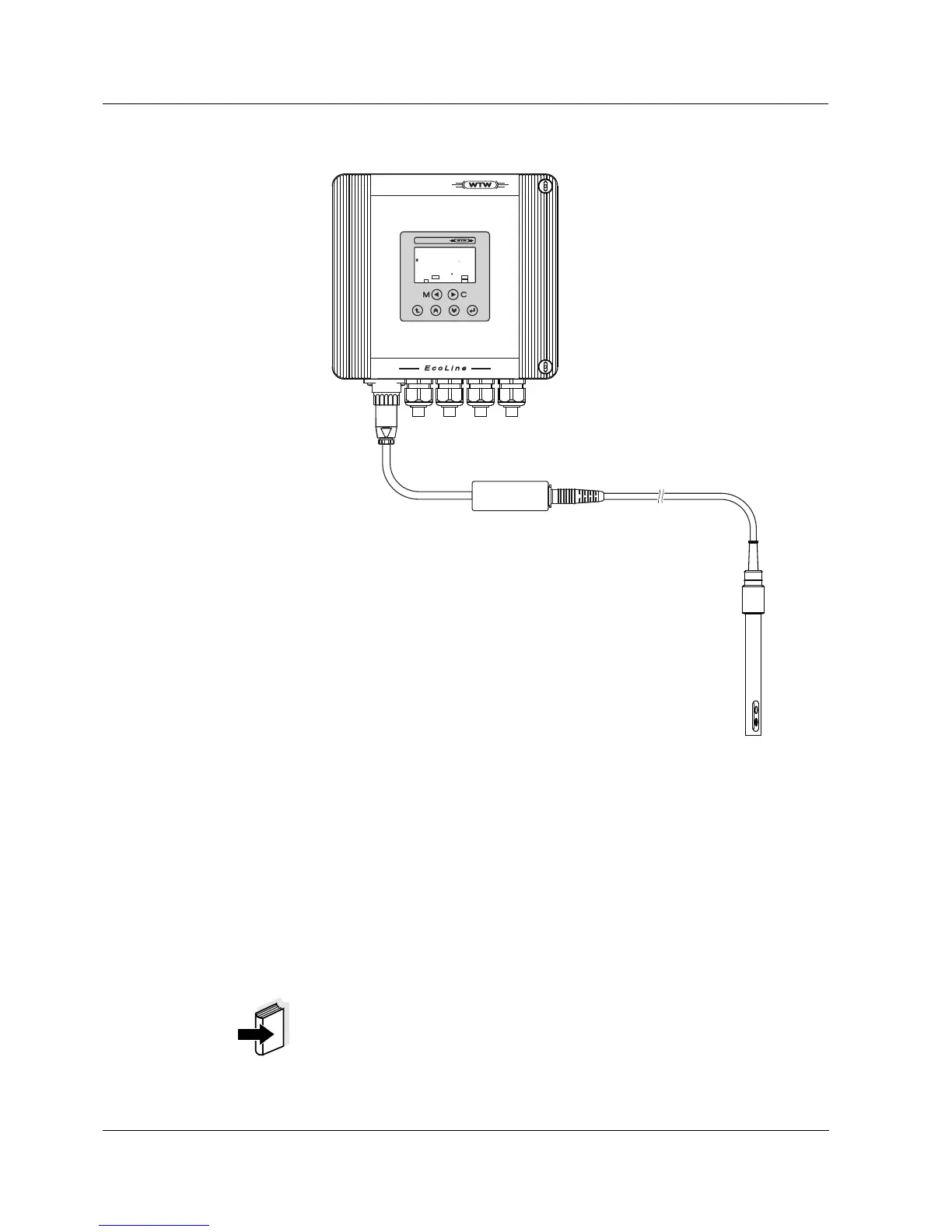

Fig. 3-4 Connection of a conductivity measuring cell with 8-pin plug
3.4.4 Cable extension
The EK 170 cable (order no. 108 206) can be used in conjunction with
the KI/S terminal box (order no. 108 606) as a cable extension between
the conductivity measuring cell and the monitorand the K 160 cable
plug (order no. 109 508) .
The maximum cable length between the electrode and monitor
including the length of the sensor connection cable is 100 m.
Note
The wiring is described in the mounting instructions of the KI/S terminal
box.
mg/l
1
1
85
°
C
REL1
5 6
O
LF 170
cm
S/
5
1 5 6
22
nLF AR
Tref20 REL1
°
C
Example: TetraCon
®
325
LF 170
