WYLER ML NT 11 - DETAILED INFORMATION to the Various Instruments; MINILEVEL; LEVELTRONIC Classic; MINILEVEL Classic A10; LEVELMETER C25;DC (Red Cover)

Page 19 of 42 pages
2. DETAILED INFORMATION to the various instruments
2.1 MINILEVEL / LEVELTRONIC „classic“
2.1.1 MINILEVEL “classic” A10 / LEVELMETER C25/DC (red cover)
The MINILEVEL "classic" has an integrated display and can be used
as a stand-alone instrument.
Two of the instruments can also be used for differential
measurements in combination with a LEVELMETER C25/DC (red
cover) / Art. no. WYLER: 025-005
IMPORTANT:
The batteries must be removed in the MINILEVEL "classic"
when connected to a LEVELMETER C25/DC (red cover)

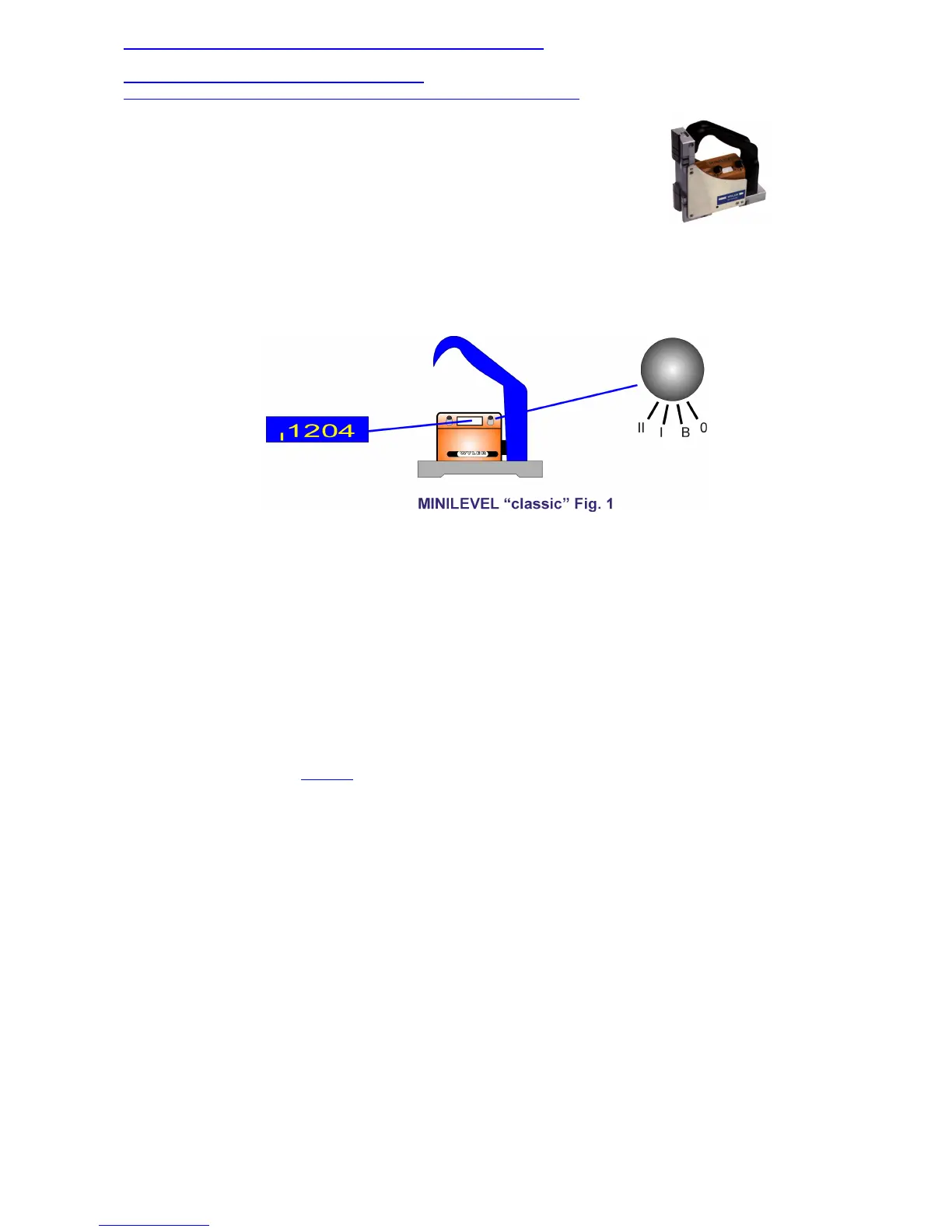

MINILEVEL „classic“ A10
Knob
The knob has four positions:
Pos. „0“
Off position
Pos. „B“
Battery check.
Minimum 700 Digit are needed
Pos. „I“
Range I
Value effective = display in digits x factor 10 x sensitivity
Pos. „2“
Range II
Value effective = display in digits x sensitivity
Knob B
(Potentiometer)
Fine adjustment of the zero point
