CI6X SERIES SPECTROPHOTOMETER
52
Viewing Pass/Fail Data
A red or green bar displays for a sample on the instrument screen, based on the tolerances
assigned to the standard. Two “green” or “red” lights also illuminates, indicating the sample’s
acceptability.

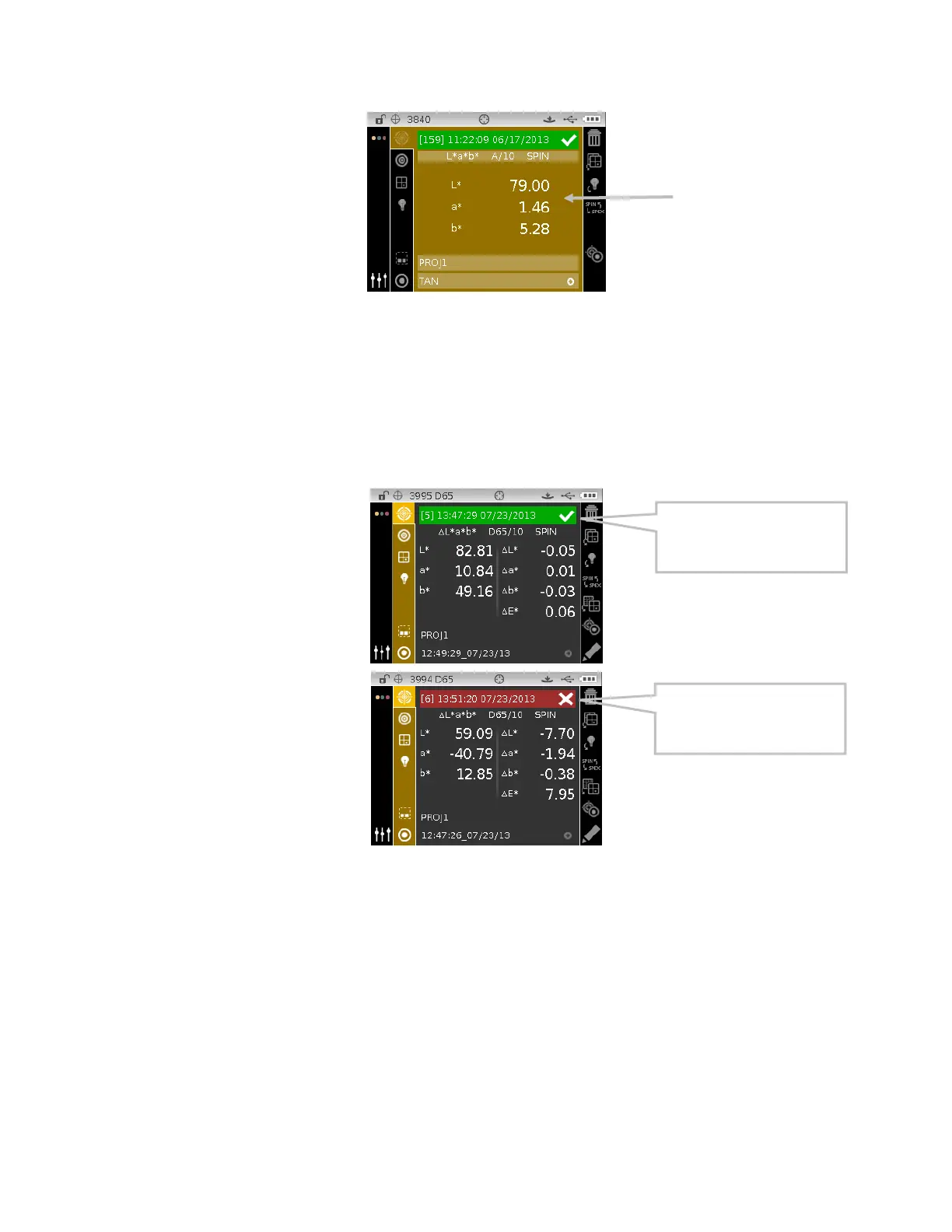

L*a*b* Color Space (pass/fail)
The following two pass/fail samples are using the L*a*b* color space and D65/10 illum/obs.
Tolerance limits of "+/-1.00" were set on DL*, Da*, and Db* for the SPIN and SPEX spectral
components.
L*a*b* Color Space (pass/warning)
The following is a pass/warning example using L*a*b* color space. Tolerance limits of "1.00"
were set to DL* Da*, and Db* for the SPIN and SPEX spectral components. In this example, the
80% warning limit for the tolerance has been exceeded. This is indicated by a yellow highlighted
checkmark and green status bar.
Content area highlighted
White “check markand
green bar indicated that the
sample passed tolerance.
Passed Sample
Failed Sample
White “X” and red bar
indicated that the sample
failed tolerance.
