SpectraLight QC
30
Description of the switches located on the two main menus
DL: Turns on/off Daylight source
DL (held): Turns on Daylight in nonstop mode (disables auto-off)
A: Turn on/off Incandescent A Lamp
A (held): Turns on Incandescent A Lamp in nonstop mode (disables auto-off)
UV: Turns on/off UV Lamp
HZ: Turns on/off Horizon Lamp
HZ (held): Turns on Horizon Lamp in nonstop mode (disables auto-off)
FL1: Turns on/off Fluorescent Lamp 1
FL2: Turns on/off Fluorescent Lamp 2
FL3: Turns on/off Fluorescent Lamp 3
AUTO: Run Automatic Sequence (see Automatic Sequence later in this manual)
AUTO (held): Edit Automatic Sequence (see Automatic Sequence later in this manual)
MORE: Toggles between Main Menu 1 and Main Menu 2
MORE (held): Enters Configuration Menu (see Configuration section earlier in this manual)
NOTE: The generic fluorescent lamp names (FL1, FL2, and FL3) can be replaced with the lamp type name
(CWF, TL84, etc.) if desired. Refer to the Switch Naming option procedure earlier in User Settings.
Auto Sequence
The SpectraLight QC can be programmed to run a sequence of light sources, each for a specified period of time
(1-999 seconds). The program is helpful if you want to view a sample under several light sources in succession
and focus on the sample’s appearance rather than manually changing light sources.
NOTE: Changing the Auto Sequence at the main menu will cause any profile that was set to exit and the name to
disappear from the main menu.

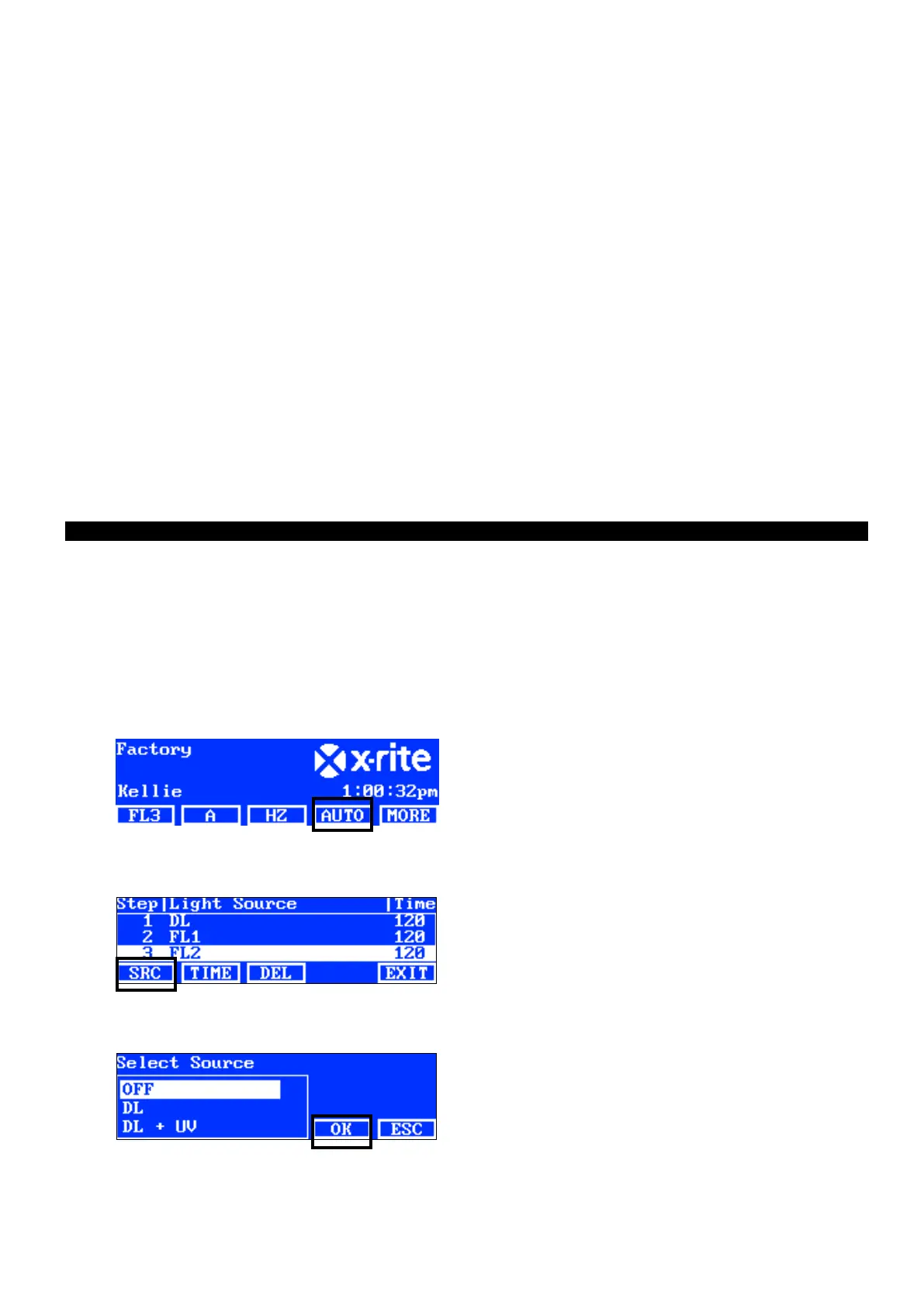

Programming an Auto Sequence
1. From the main menu, press and hold the AUTO switch until the auto sequence program screen appears in
the display panel.
2. Use the up (▲) and down (▼) arrow switches to highlight step 1 on the screen.
3. Press the SRC switch to access the Select Source screen.
4. Use the up (▲) and down (▼) arrow switches to highlight the desired lamp source for step 1 in the sequence.
If no source is required for the step, select OFF. Press the OK switch to save selection and exit.
