SpectraLight QC
36
OPTIONAL CONTROL BOX
The optional control box is used to operate up to eight banks (groups) of luminaires. The display on the control
panel emulates the same controls as the luminaire for easy operation. Each group can simultaneously operate
the group luminaires at one time.

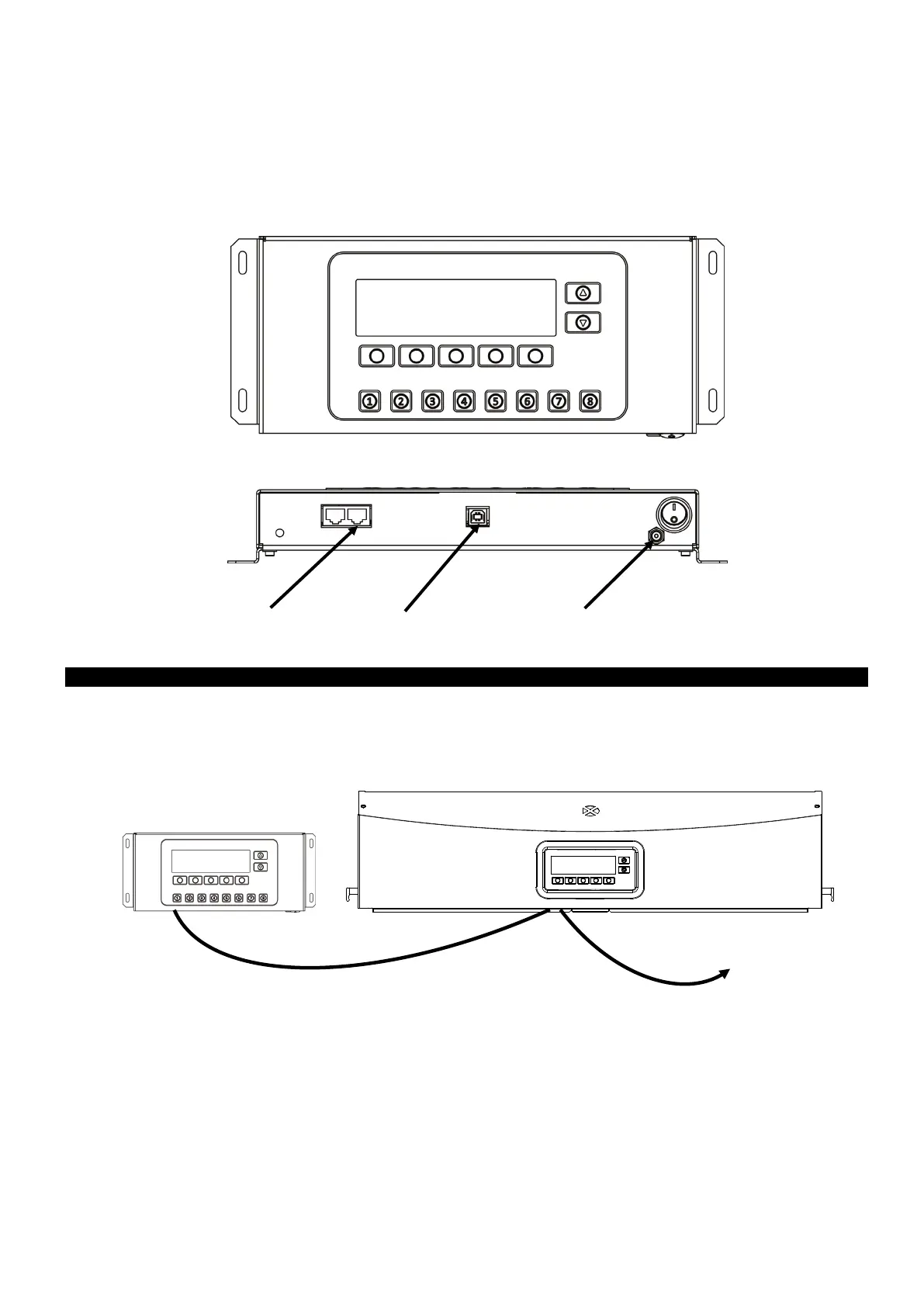

Installation
1. Mount the control box to a location where it will be used.
2. Connect one end of the daisy chain cable to the right port on the bottom of the control box.
3. Connect the other end of the cable to the left port under the front panel of the first luminaire.
4. Continue connecting daisy chain cables to the remaining luminaires (left port in and right port out).
5. Attach the AC adapter to the control box and plug into an AC wall receptacle.
6. Connect the PC to the USB port on the control box to access and configure all of the individual luminaires.
7. Setup each luminaire with the required Group number and Device number. Refer to the Daisy Chain section
earlier in this manual for setting up the luminaires.
chain port
