SpectraLight QC
9
Installing Luminaire Into Light Booth
NOTE: The table or bench height should be determined by the average height of the observer and whether
observations will be made from a standing or sitting position.
1. Position the assembled viewing booth on the surface where it will be used.
2. Carefully unpack and remove the diffuser from the shipping carton and set aside. Make sure to keep the
shipping container and packing in the event that reshipment becomes necessary.
ATTENTION: Due to the weight of the luminaire, two people are required to perform the following steps.
3. Carefully unpack and remove the overhead luminaire from its shipping container using the handles/brackets
located on the short sides.
NOTE: Be sure to remove all packing foam from inside the luminaire.
4. With its controls and indicators facing to the front, carefully place the luminaire on top of the viewing booth.
Align the luminaire on the viewing booth.
5. Secure the luminaire to the rear, left and right panels of the booth using nine screws.

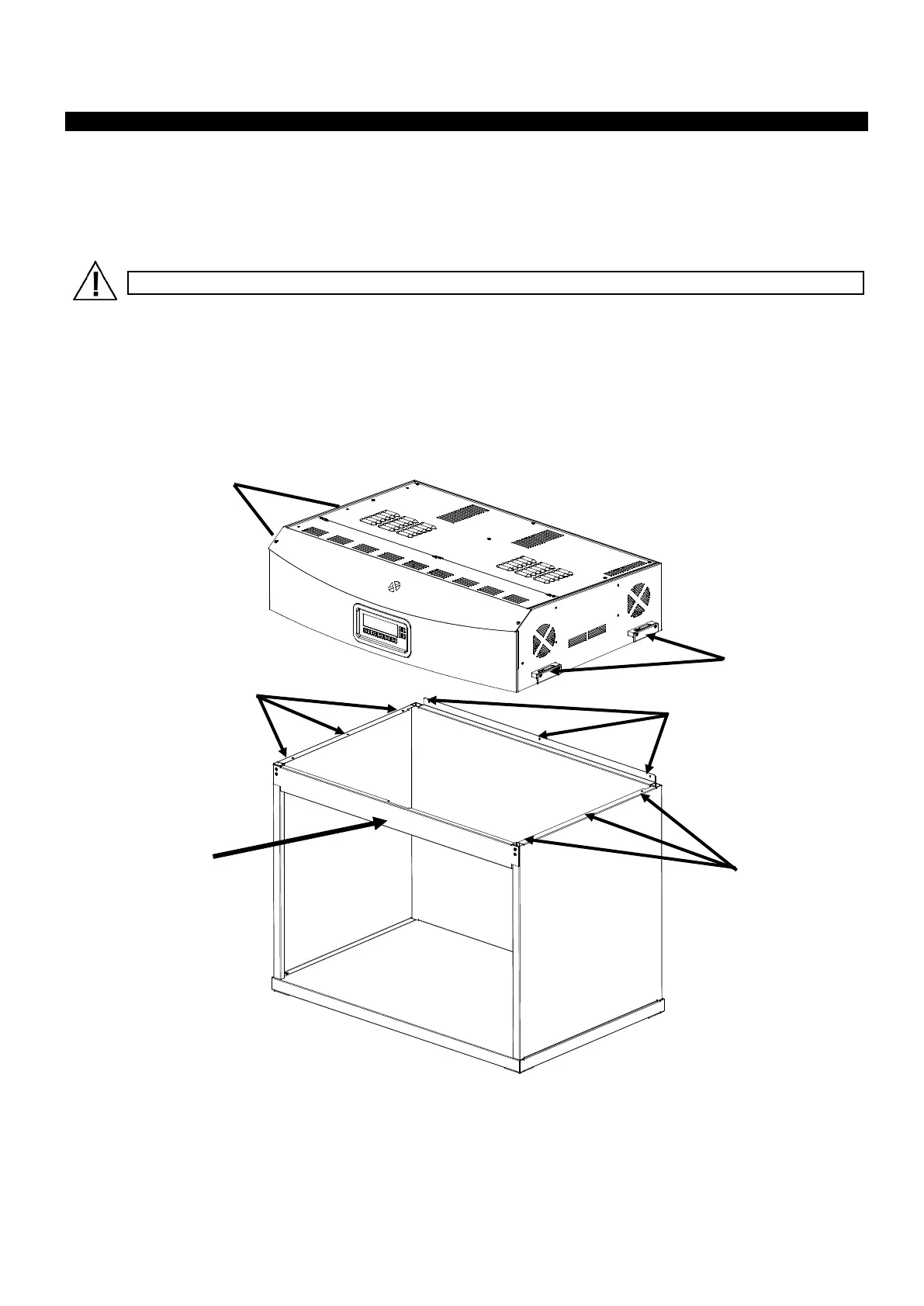

Figure 6. Luminaire Placement
6. Place assembled viewing booth and luminaire in or near the center of a table or bench capable of holding a
minimum of 136 kg (300 lbs).
7. Remove the front panel from the light booth for diffuser installation.
