RM200QC
3
EN

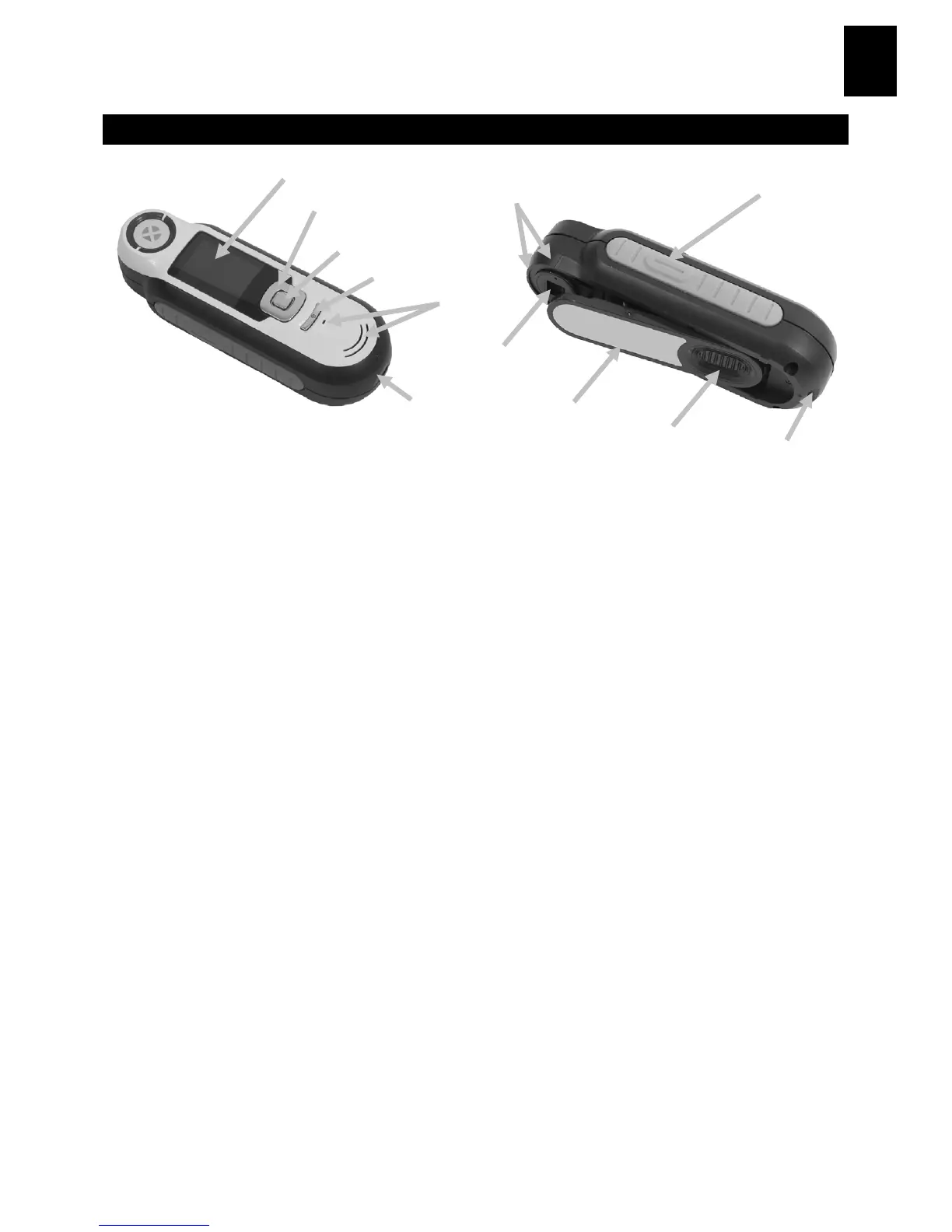

2. Instrument Description
1. Lanyard loop: Provides a secure way to carry your device.
2. Power on/off: Used to turn the instrument on and off.
3. Measure button: Two stage button; press lightly to start preview and firmly
to measure. Lightly pressing this button always returns you to the Color QC
screen.
4. Navigation control: Navigates the on screen menus and function bar in four
directions. Pressing on the left side moves the focus to the next available item to
the left. Pressing on the right side moves the focus to the next available item to
the right. The top and bottom sides perform the same function, only in an up and
down direction.
5. Enter button: Selects menu items and opens tag menu.
6. USB connection: For charging the battery and interface to the software.
7. Speaker and Microphone: For recording and playback of voice tags.
8. Display: Communicates color information, instrument status, and option.
9. Targeting marks: Allows for easy positioning on samples.
10. White Reference slider: Positions the calibration tile for measurement or
calibration/storage.
11. Measurement optics: Area that illuminates and measures the color.
12. Information label: Provides compliance, serial number and other information.
(8)
(4)
(5)
(2)
(7)
(6)
(3)
(9)
(1)
(10)
(12)
(11)
