Operation
2–6 975-0188-01-01
Charging Batteries
Before you start to charge batteries read the “Important Safety Instructions” on
page v and take all safety precautions when working with batteries.
To charge your batteries:
1. If possible, disconnect all loads from the battery, by opening a disconnect
switch, or by switching loads off.
2. Ventilate the area around the battery thoroughly. Review the charging
instructions supplied by the manufacturer of your batteries and take any steps
required.
3. Apply AC power to the BC Series by closing the AC breaker and/or applying
shorepower or turning the generator on. The indicator lights will blink as an
initialization sequence runs, lasting typically 10 s or so. After initialization the
charging indicator light illuminates.
During charging, the charging current indicator lights show the total current
being delivered to the selected battery bank as well as any DC load applied.
4. Re-connect all loads to the battery, by closing a disconnect switch, or by
switching the loads on.
The batteries can be in one of six different stages:

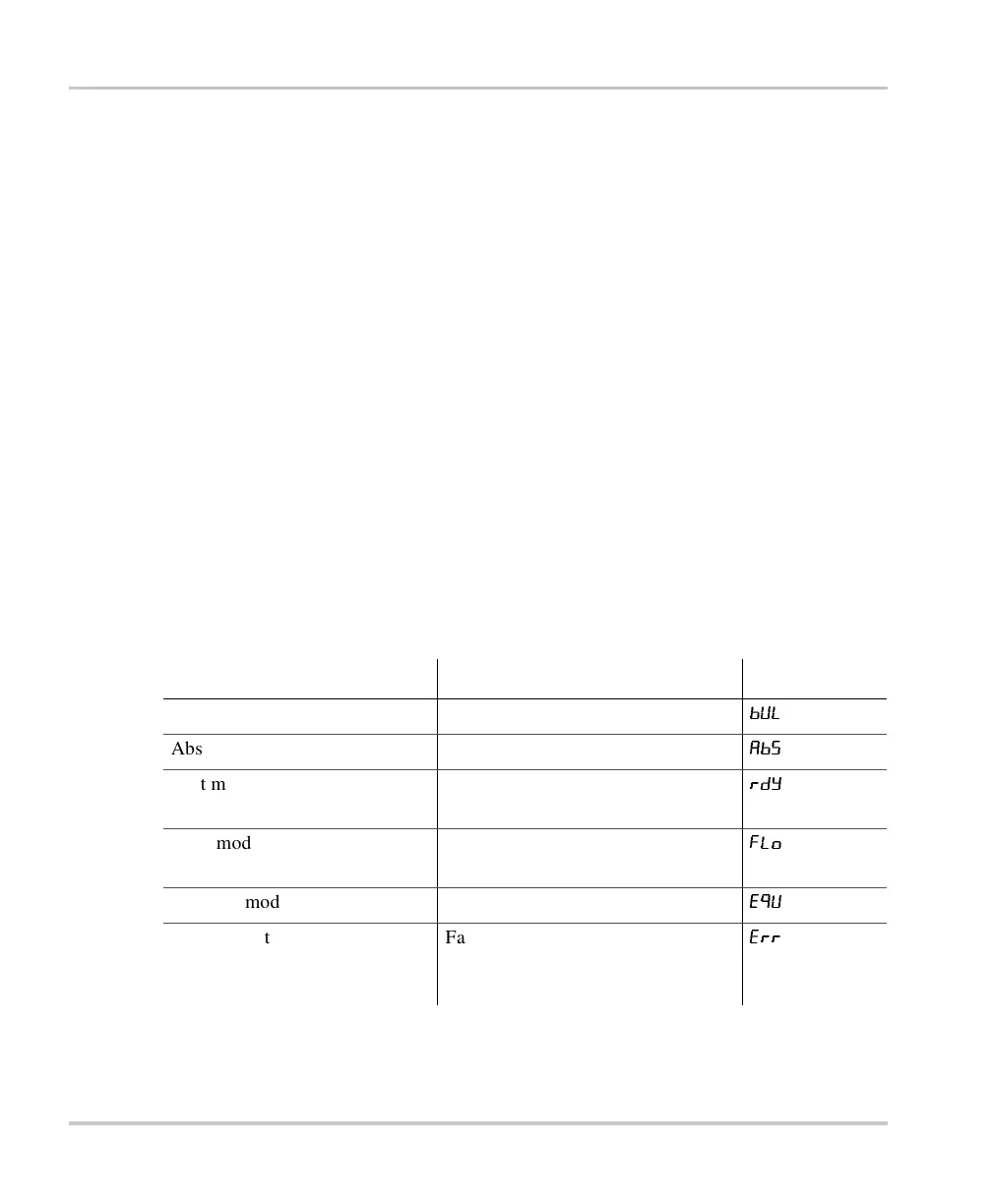

Mode Onboard Status Indicator Lights Remote Display
Bulk mode Charging indicator light illuminates
bUL
Absorption mode Charging indicator light illuminates
AbS
Rest mode (2-stage charging) Ready indicator light illuminates
(if all banks are in rest)
rdy
Float mode (3-stage charging) Ready indicator light illuminates
(if all banks are in float)
FLo
Equalize mode Charging indicator light flashes
EqU
Battery fault Fault indicator light illuminates
(remote display shows details of
fault)
err
