Rear Panel
975-0188-01-01 1–7
Rear Panel

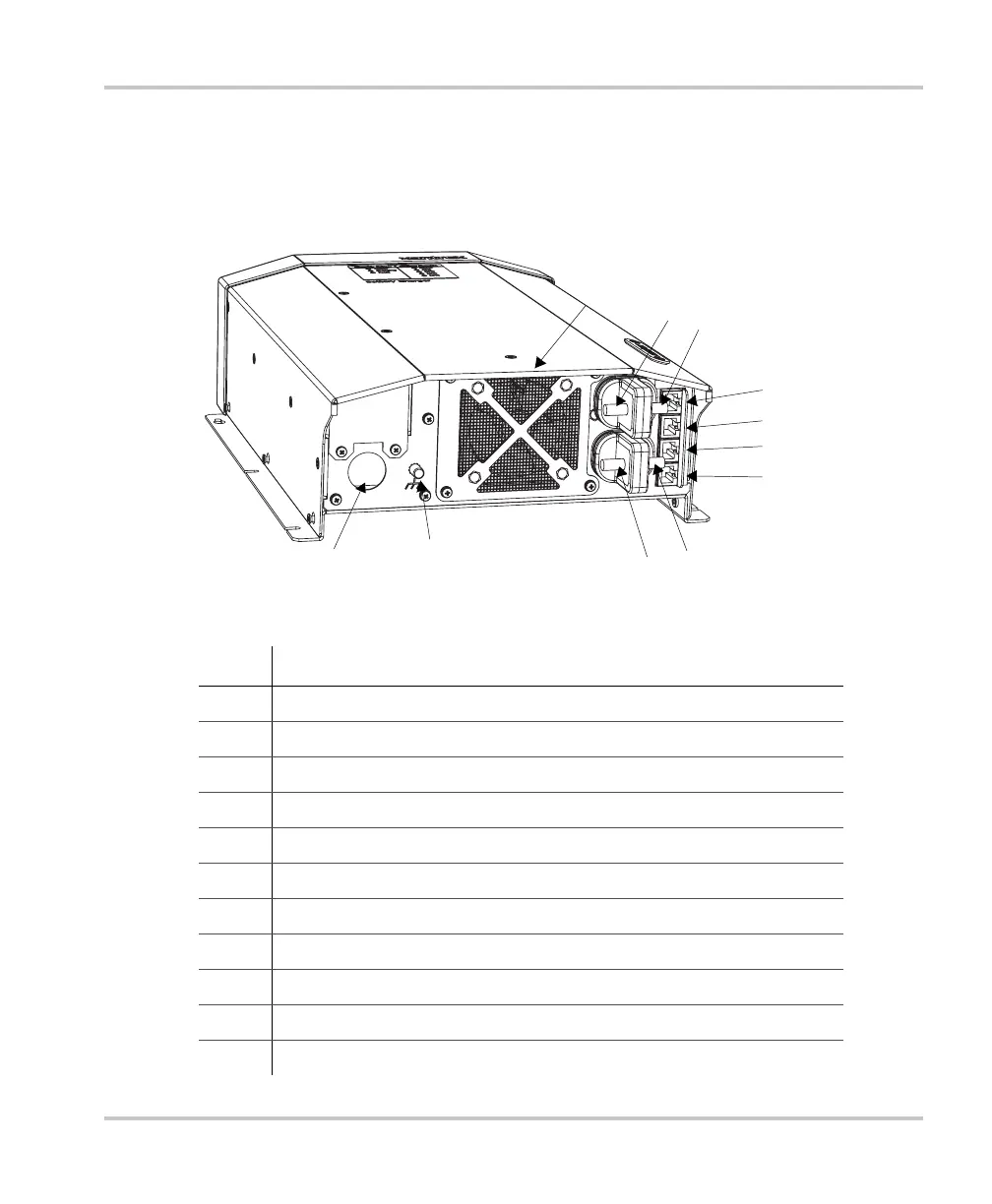

This section describes the parts of the rear panel of the BC Series. Figure 1-4 shows
the rear panel.
Figure 1-4
BC Series Rear Panel
Item Description
1 Optional remote display communication connector
2 BTS1 (battery temperature sensor for bank 1) connector
3 BTS2 (battery temperature sensor for bank 2) connector
4 BTS3 (battery temperature sensor for bank 3) connector
5 Battery negative, common for all 3 banks (6 mm stud)
6 Battery positive for bank 1 (6 mm stud)
7 Battery positive for bank 2 (6 mm stud)
8 Battery positive for bank 3 (6 mm stud)
9 Fan assembly
10 Chassis ground (earth) for DC wiring
11 AC wiring access panel
1
4
3
2
8
7
9
11
10
6
5
