Information Centers of the BC Series
975-0188-01-01 1–5
Optional Remote Display
This section describes the parts of the optional remote display of the BC Series. The
remote display can be mounted up to 65 ft (20 m) from the BC Series for
convenience. The remote display may already be installed with your BC Series, or
you may purchase one and install it. Figure 1-3 shows the remote display.
A “press and hold” action on the remote display means that the button must be held
down for more than 2 seconds in order to send the instruction. A “press” action on
the remote display means that the button must be pressed and released before 2
seconds have elapsed.

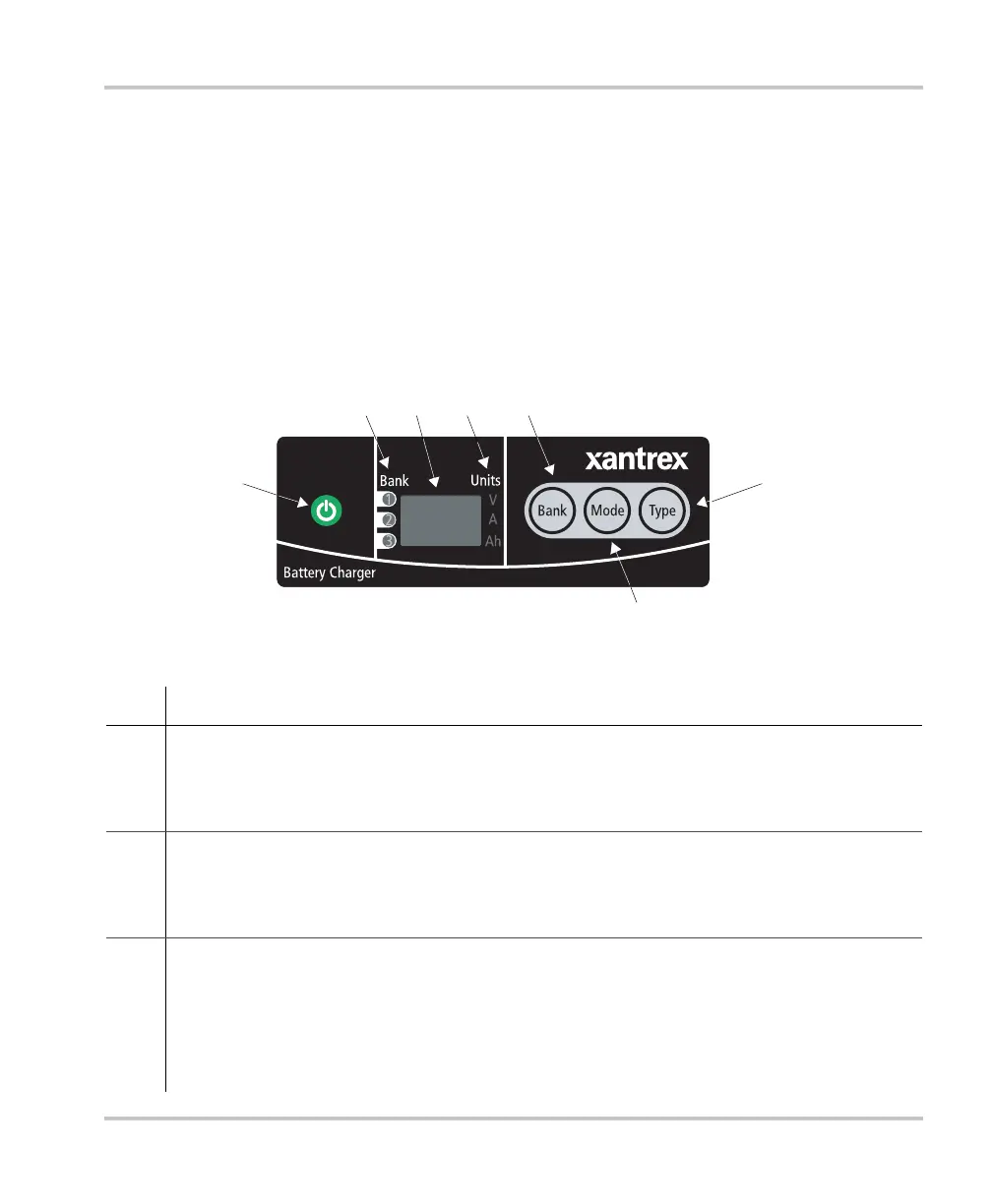

Figure 1-3
BC Series Remote Display
Item Description
1
ON/STANDBY push button
• Press to turn on or disable the charger while AC power is connected
• Press and hold to apply selection when in setup or equalization mode
• Press to show battery bank voltages when AC is disconnected
2 Battery bank indicator lights
• Illuminate to show which bank has been selected for setup or status display
• Illuminate during a fault or warning to show which bank has the fault or warning, or
illuminate all three if the charger itself has the fault or warning
3 Alpha-numeric display shows
• Configuration
• Fault or warning messages (see Table 3-2 on page 3–4)
• Battery bank voltage and current
• Type of charging (2 stage or 3 stage)
• State of charge
1
2 3 4 5
7
6
BC_Charger_User.book Page 5 Friday, August 12, 2005 3:31 PM
