Introduction
1–4 975-0012-01-02 Rev A
DC Side
The DC side of the DR Inverter has the equipment ground lug, the positive (+)
battery terminal, and the negative (–) battery terminal.
Optional Equipment
The following options are available for the DR Inverter/Chargers.
Remote Control (RC8)
The RC8 allows the inverter to be switched ON or OFF remotely and includes an
LED status indicator. This unit is also compatible with the RC4 (the predecessor
to the RC8); although the RC4 is no longer available for purchase from Xantrex.
Stacking Interface (DRI)
The DRI stacking interface provides 3-wire 120/240 Vac at twice the power using
dual DR Inverters (120 Vac/60 Hz units only).
Conduit Box (DRCB)
The DRCB conduit box connects to the DC side of the inverter and accepts a DC
conduit run.
Unpacking and Inspection
Carefully unpack the inverter/charger from its shipping carton.

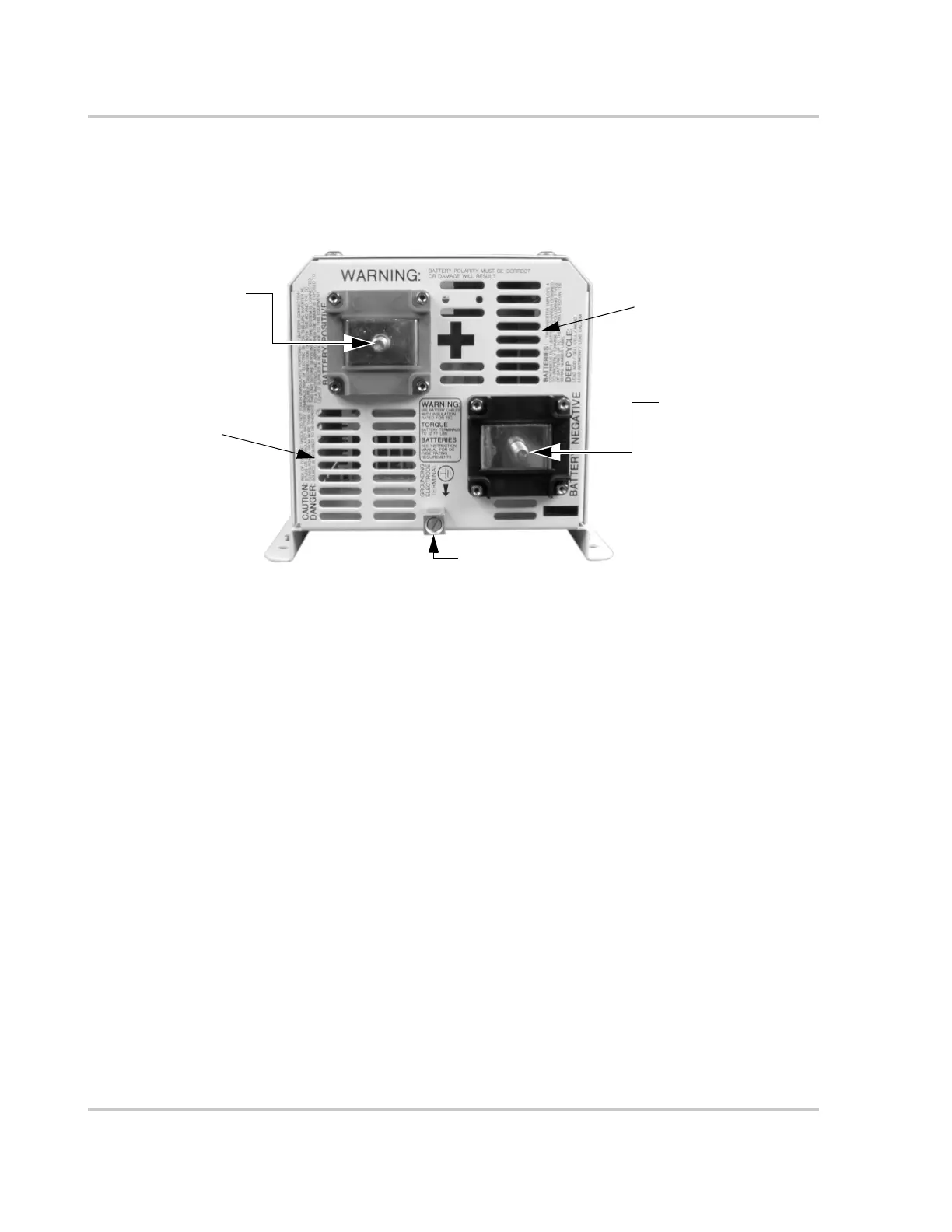

Figure 1-3
DC Side of the DR Inverter
Ventilation Holes
Battery Positive
(+) Terminal
Ventilation Holes
Ground Lug
Battery Negative
(–) Terminal
