Installation
2–28 975-0012-01-02 Rev A
AC Input Wiring - Off-Grid Applications using a 120 Vac Generator
Follow the example below to complete the wiring for an off-grid application.

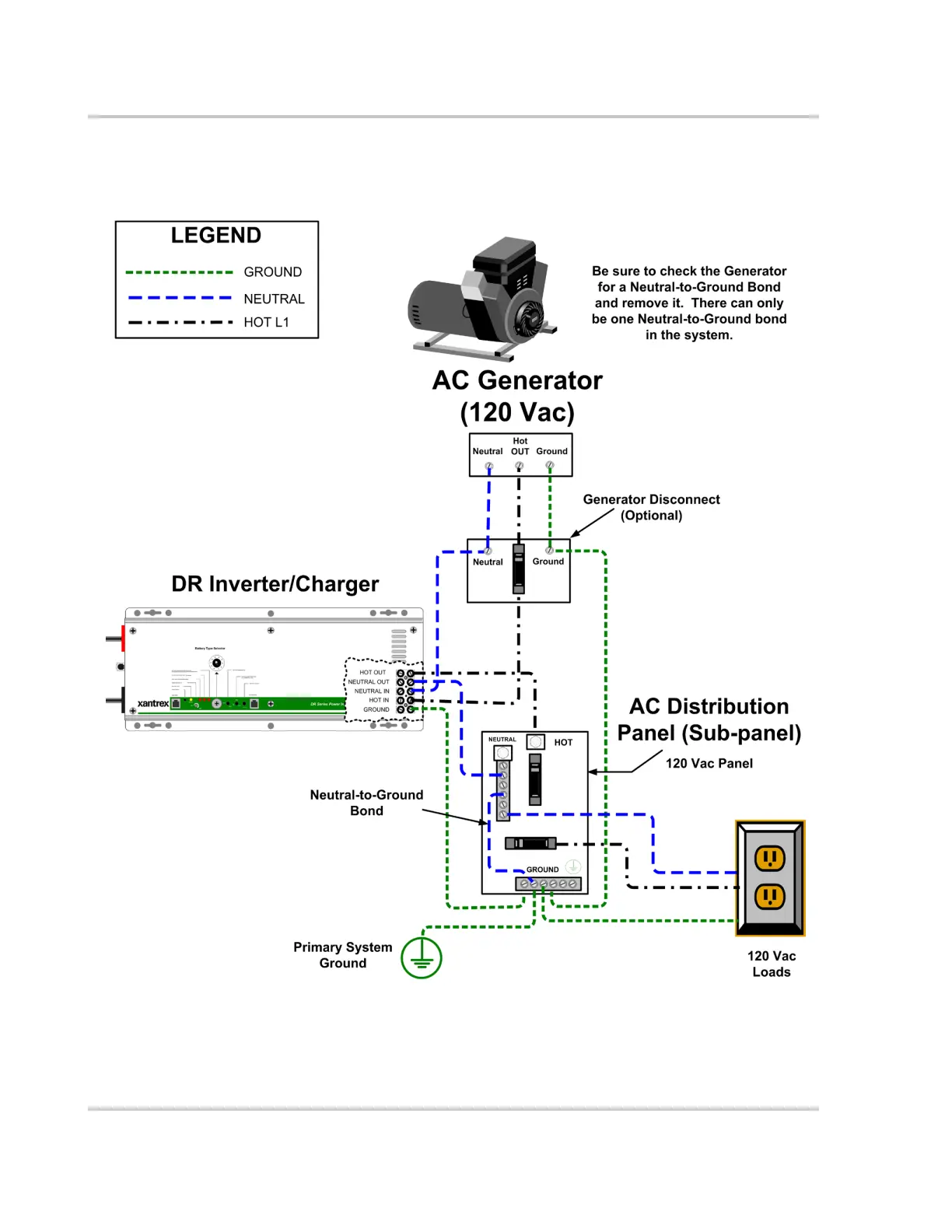

Figure 2-20
AC Wiring using a 120 Vac Generator - Off-Grid Application
