AC Wiring
975-0012-01-02 Rev A 2–31
Figure 2-22

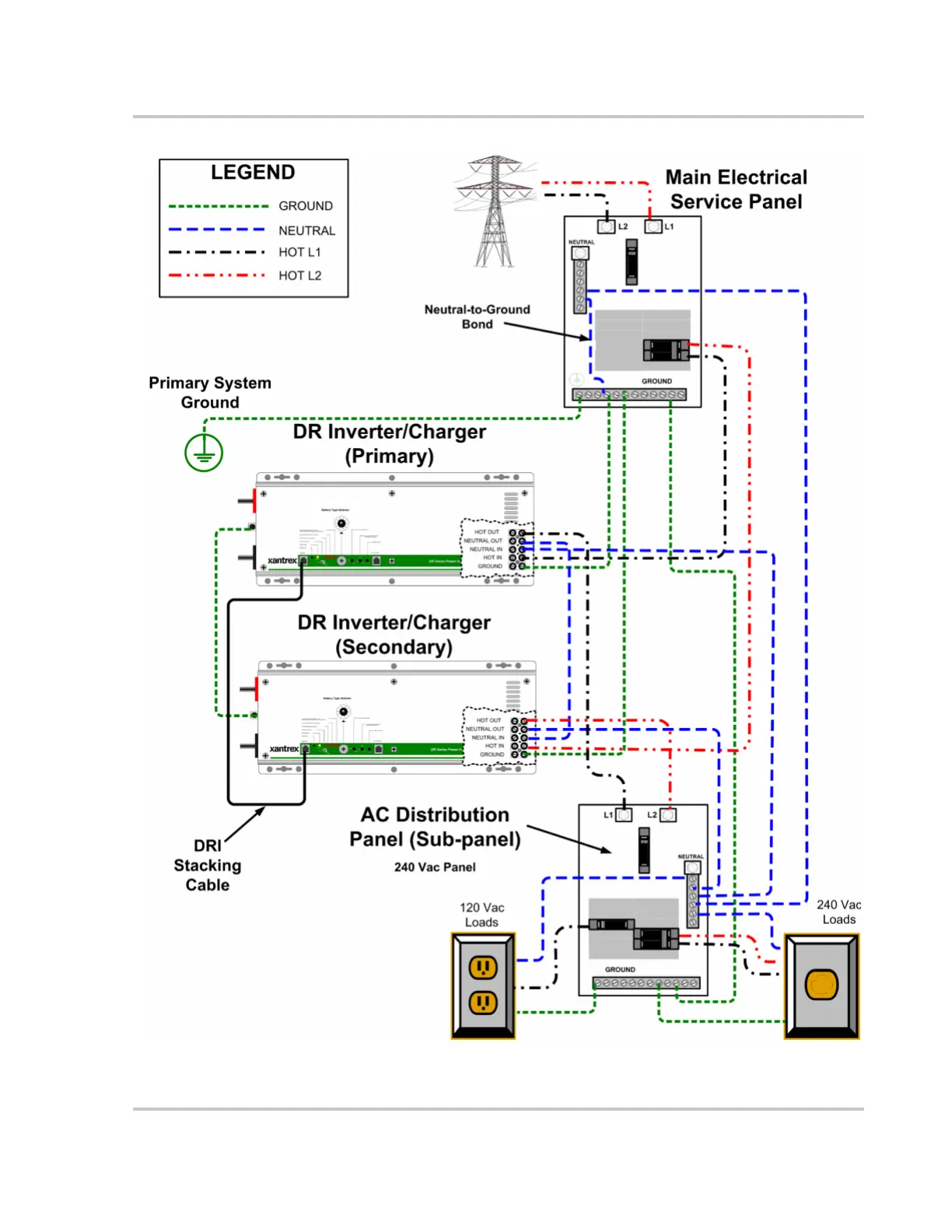

AC Wiring for dual-inverters - On-Grid Application (120 Vac models only)
