AC Wiring
975-0012-01-02 Rev A 2–29
AC Input Wiring - Off-Grid Applications using a 240 Vac Generator for
120 Vac Loads
Follow the example below to complete the wiring for an off-grid application.

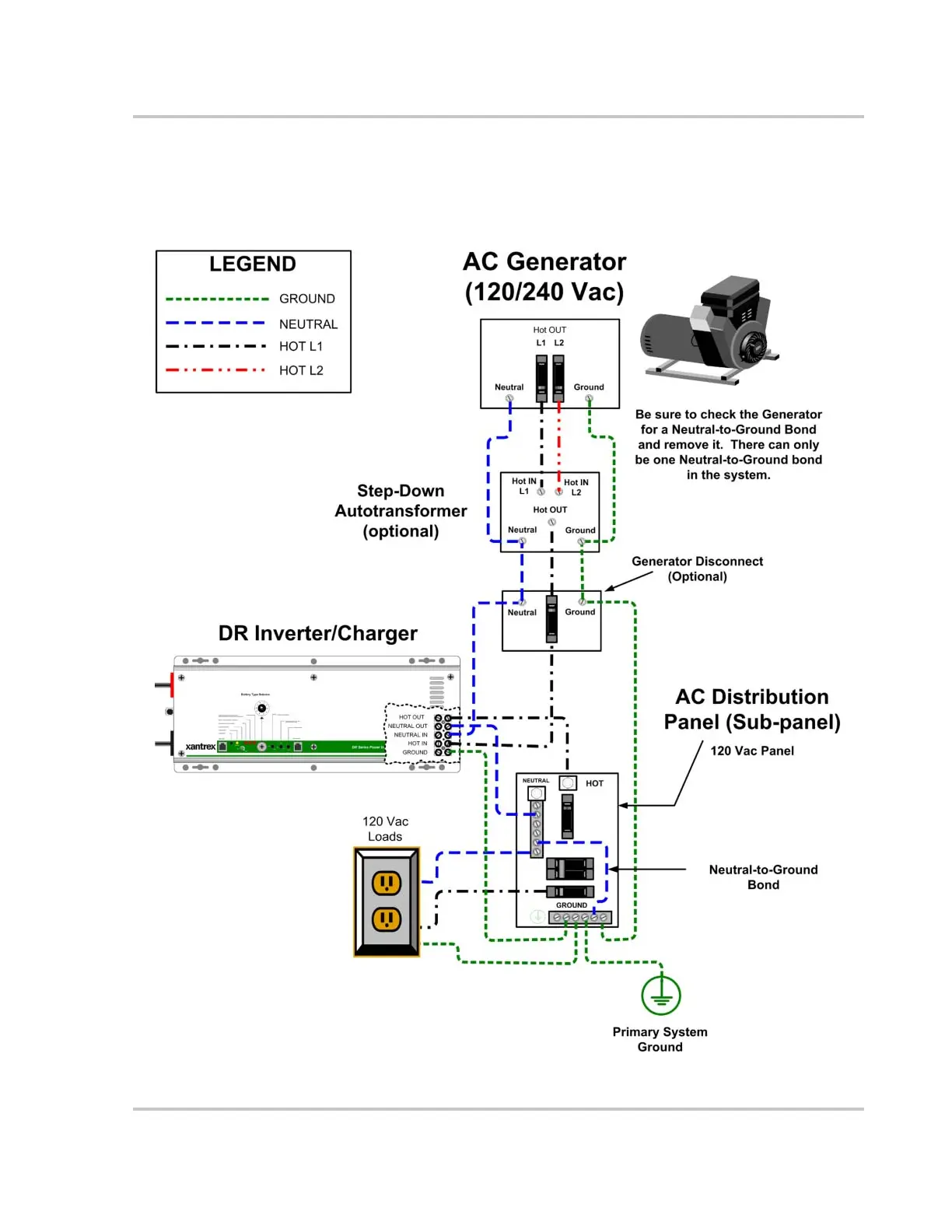

Figure 2-21
AC Wiring using a 240 Vac Generator with 120 Vac Loads only- Off-Grid Application
