Xantrex Freedom XC PRO Series

Display Panel
10 Freedom XC PRO Owner's Guide
Display Panel
1
OUTPUTBATTLOAD
kW
100%
25%
Hz
VA
%
kW
Hz
VA
%
C
INPUTBATTTEMP
AC
BYPASS
ERROR
OVERLOAD
CHARGING
888 888
88
2 3 4
5

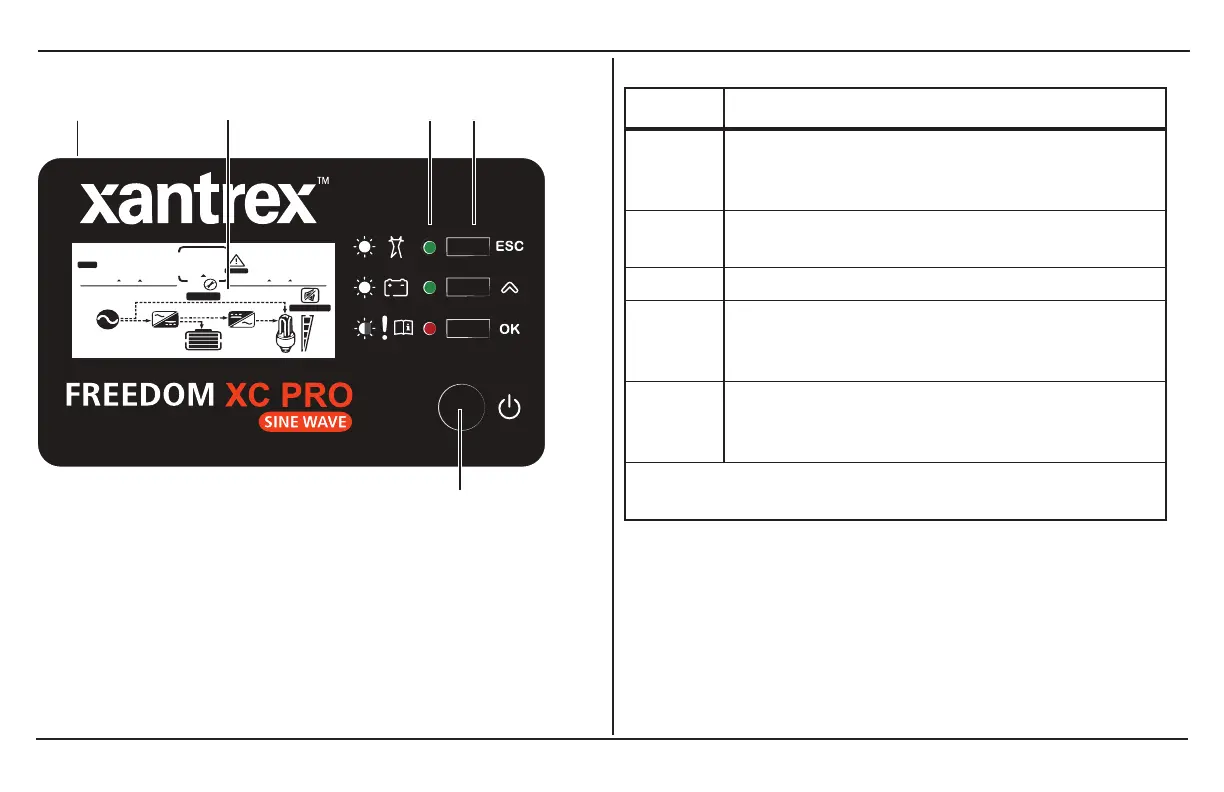

Figure 3 Display Panel
Feature Description
1
Display panel displays status information on the
screen. It is comprised of a display screen, LEDs,
select and power buttons.
2
Multi-function LCD screen shows status information
and error codes.
3 Status LEDs indicate the mode of operation.
4
Three function buttons change status information
displayed on the screen. Also, changes
inverter/charger settings.
5
Power button is pressed for turning on the unit. The
inverter turns on for the loads and when applicable,
the charger turns on automatically.
IMPORTANT: See Freedom XC PRODisplay Panel on page 50
for detailed information on the panel’s buttons.
Table 3Display Panel Features
