Xantrex Freedom XC PRO Series User Manual

Basic Installation Procedures
24 Freedom XC PRO Owner's Guide

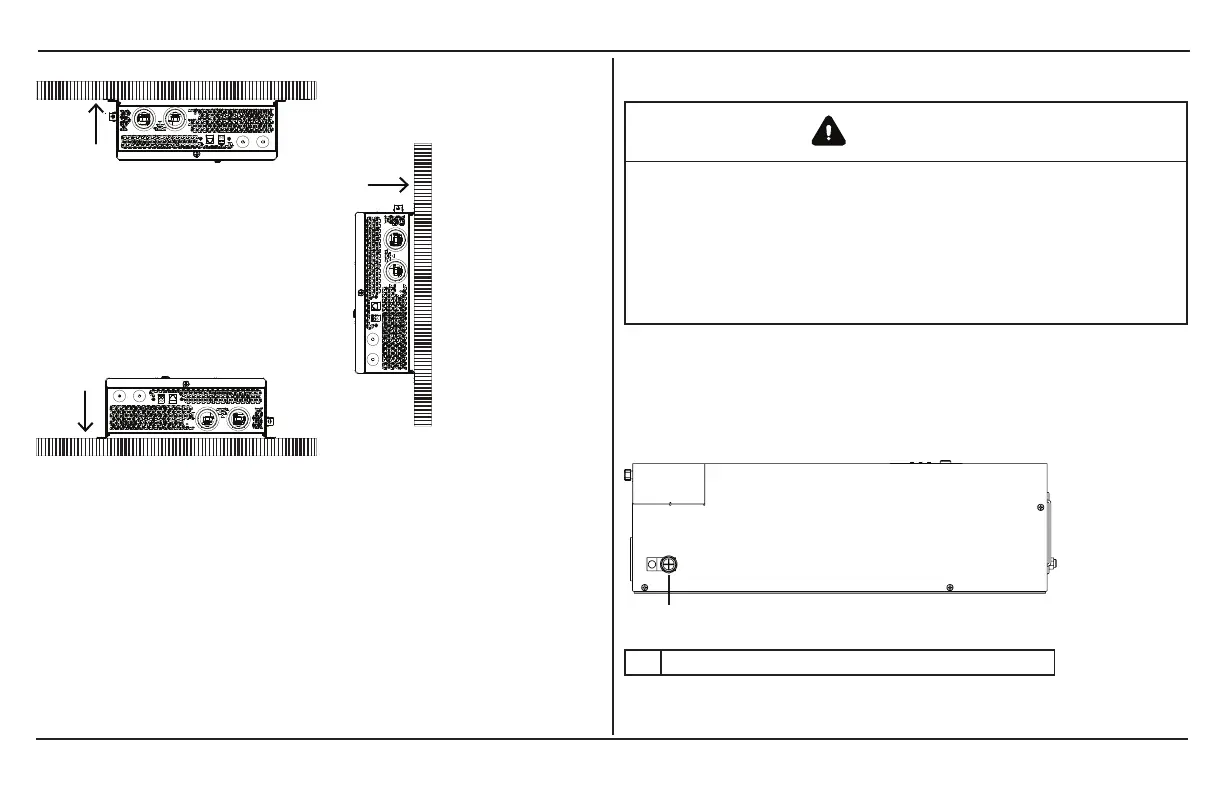

Figure 6 Approved Mounting Orientations
A
B
C
3. Mark the desired number of mounting holes on the wall by
placing the unit on the wall.
4. Pilot-drill the mounting holes.
5. Fasten the Freedom XC PRO to the mounting surface. If
you are mounting the unit on a wall or bulkhead, use #12 or
#14 pan-head wood or sheet metal screws to secure it to the
framing behind the wall or bulkhead. Alternatively, use nut
inserts and ¼"-20 machine screws.
Connecting the Equipment Ground
WARNING
ELECTRIC SHOCK HAZARD
Never operate the Freedom XC PRO without properly connecting
the equipment ground. A shock and energy hazard could result
from improper grounding.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
The Freedom XC PRO has a ground lug on the side of the unit as
shown in Connecting the Equipment Ground. Follow the
guidelines in Connecting the Equipment Ground to connect the
inverter/charger’s chassis to the ground.
Figure 7 DC Panel Connections
1
1 DC grounding lug

Xantrex Freedom XC PRO Series Specifications

General

Dimensions	Varies by model
Battery Type	Flooded, Gel, AGM, Lithium
Certifications	UL
Output Current	30/50/60 A
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
