Xantrex SOLAR CHARGE CONTROLLER 30 User Manual

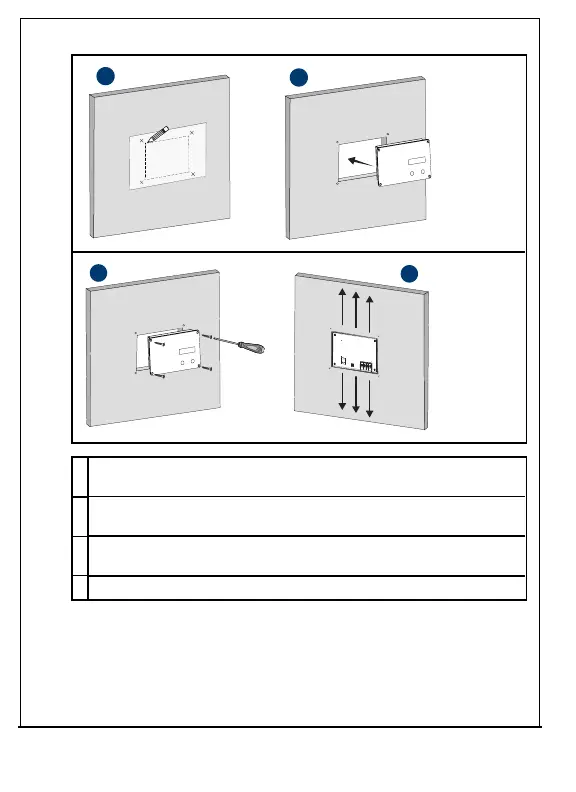

Figure 1 Wall-mounting instructions
1
2
3
4
1 Using the mounting template at the end of this guide, mark the positions of the
mounting holes and the outline of the hole in the wall.
2 Using a keyhole saw, cut the hole in the wall and insert the back of the charge
controller through the hole.
3 Using the provided mounting screws, secure the charge controller on the wall.
NOTE: For drilling on hard wood use bit size 1/16 and on soft wood use bit size 3/64
4 Allow for 15mm (10in.) of clearance on the top and bottom of the unit.
20 975-1012-01-01 Rev B
Oct 2019

Xantrex SOLAR CHARGE CONTROLLER 30 Specifications

General

Brand	Xantrex
Model	SOLAR CHARGE CONTROLLER 30
Category	Controller
Language	English
