Preparing for Installation
975-0402-01-01 2–3
This guide for use by qualified installers only

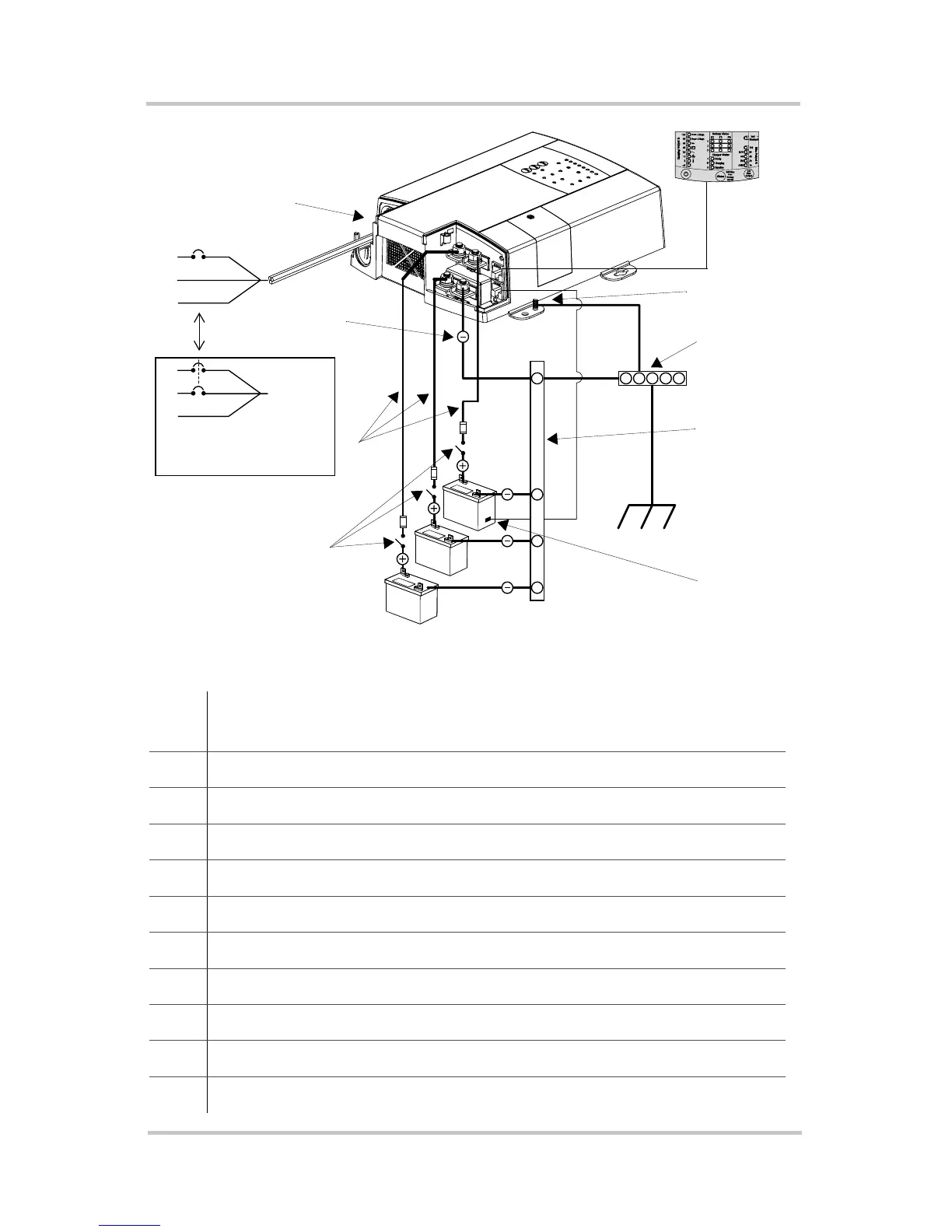

Figure 2-1
Typical Truecharge™ 2 Battery Charger System Installation
1 AC mains source protected by correct size and type of branch rated
circuit breaker
2 AC input wiring compartment
3 DC negative cable
4 DC positive cables
5 DC circuit breakers or DC fused disconnects
6 Battery or battery bank
7 Battery Temp. Sensor (optional accessory part number: 808-0232-01)
8 Engine ground bus or DC negative bus
9 Ground bus
10 DC chassis ground (earth)
11 Remote panel (optional accessory part number: 808-8040-00)
L
N
G
L
N
G
NOTE: Not to scale. For illustration purposes only.
NOTE: In some jurisdictions a
double-pole breaker may be
required.
5
2
1
3
4
6
6
6
9
7
10
8
11
To Next Page
