Installing the Truecharge™ 2 Battery Charger
975-0402-01-01 2–17
This guide for use by qualified installers only

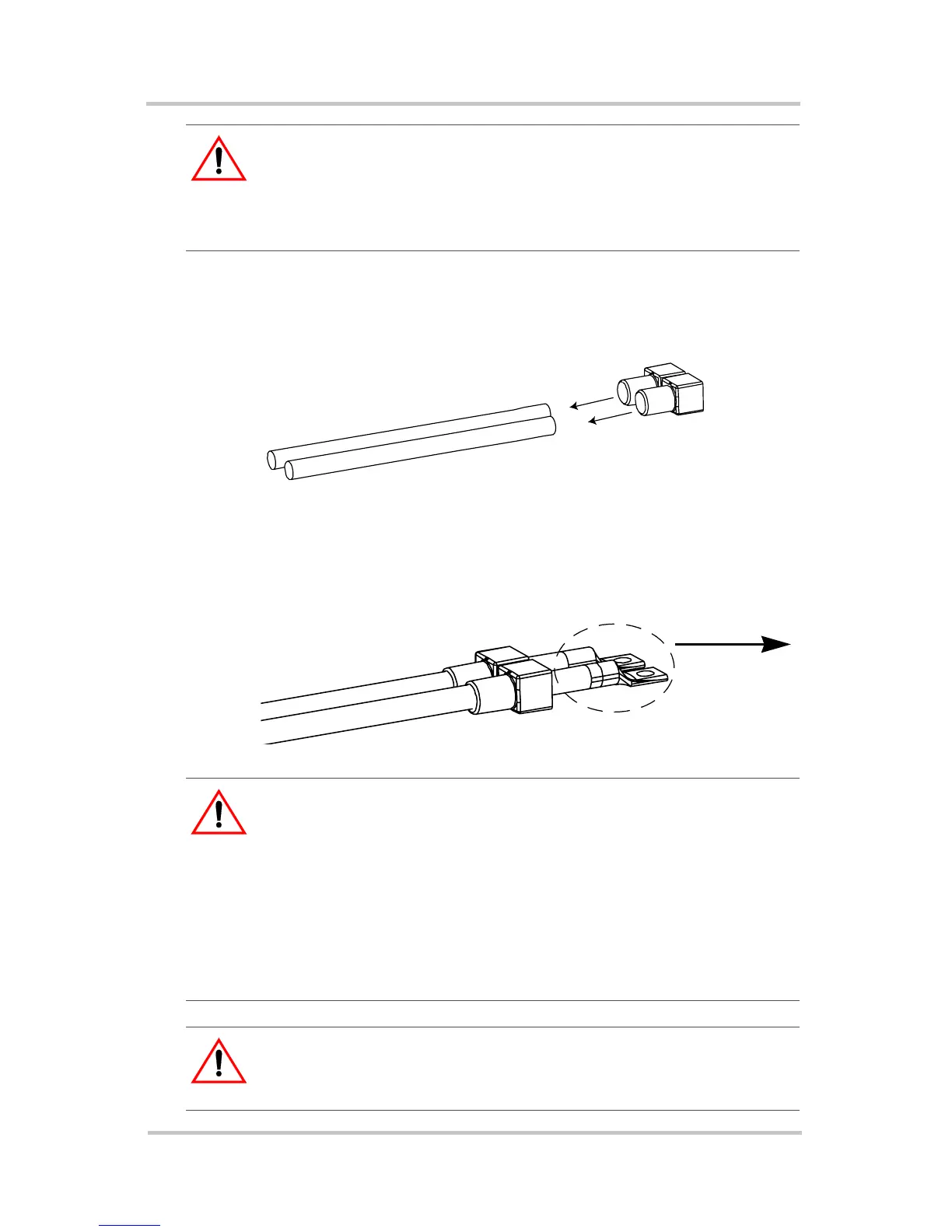

5. Insert and slide the rubber boot(s) over the charger end of
the DC battery cables.
6. Install crimp lugs on the charger end of the DC battery
cables using the crimp manufacturer’s instructions and
tool.
WARNING: Shock hazard
The rubber boots must be installed over the Truecharge™ 2 Battery
Charger DC terminals to keep water off of live parts and to
maintain the chargers' IP-32 and drip-proof ratings.
CAUTION: Reverse polarity damage
Before proceeding to the next step, carefully check the wiring
polarity – make sure the positive terminals of the Truecharge™ 2
Battery Charger will be connected to the correct terminals of the
battery (fuses or breakers) and from there to the positive terminals
of the battery. Make sure the negative terminal of the Truecharge™
2 Battery Charger will be connected to the battery negative terminal
(or DC negative bus). Do not reverse the connections.
WARNING: Fire and burn hazard
Make sure that the DC fuse and circuit breaker are open.
To charger
