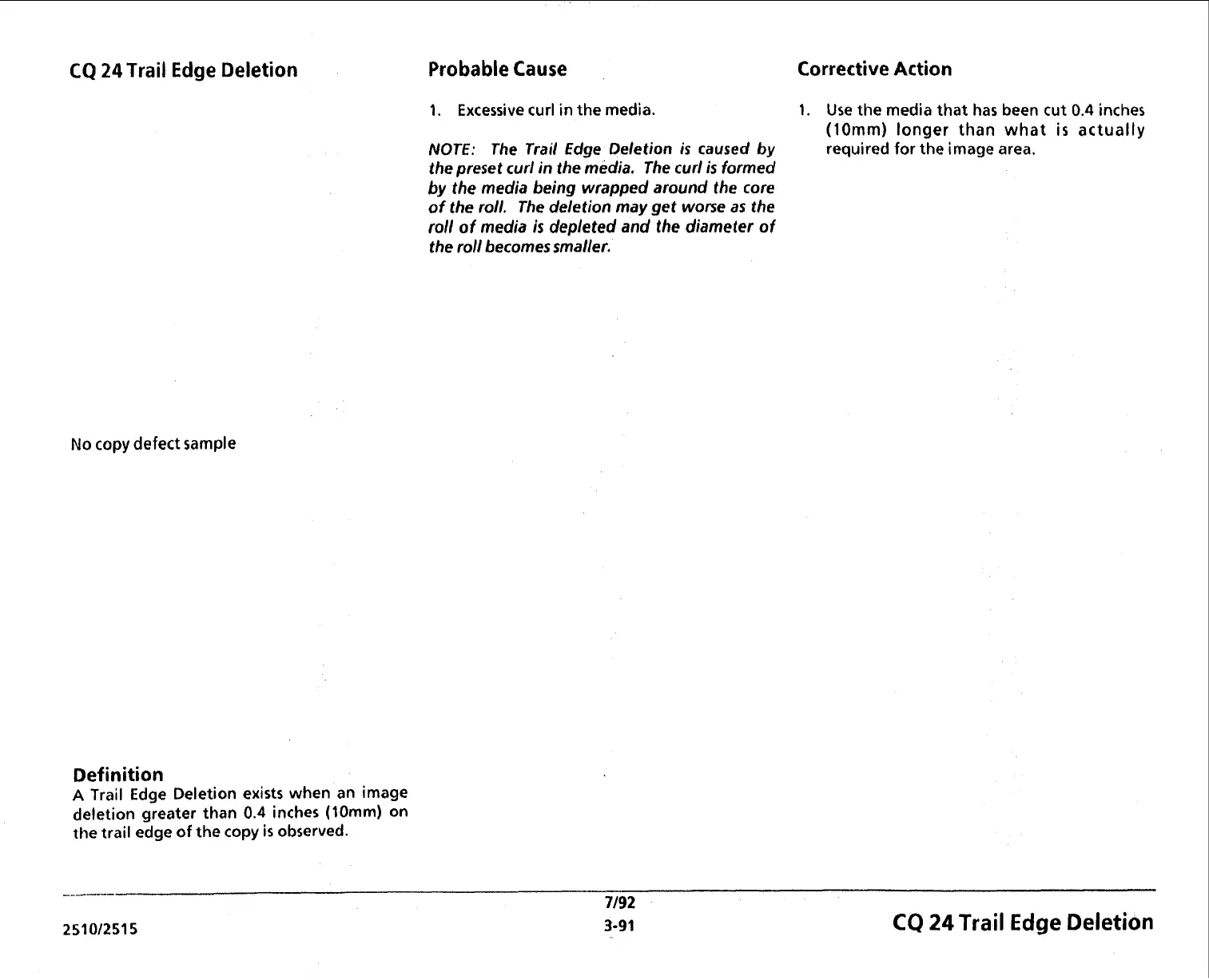

CQ 24 Trail Edge Deletion Probable Cause Corrective Action
1. Excessive curl in the media.
1. Use the media that has been cut 0.4 inches
(1Omm) longer than
what is actually
NOTE: The Trail Edge Deletion
is caused by
required for the image area.
the preset curl in the media. The curl is formed
by the media being wrapped around the core
of the roll. The deletion may get worse as the
roll of media
is depleted and the diameter of
the roll becomes smaller.
No copy defect sample
Definition
A Trail Edge Deletion exists when an image
deletion greater than
0.4 inches (10mm) on
the trail edge of the copy is observed.
CQ 24 Trail Edge Deletion
