REP
10.1
Heat
Rod
I
Parts List
on
PL
10.2
REMOVE
HEATROD
A3
1.
Removal
CAUTION
Fuser may be hot, allow fuser to cool
WARNING:
before removing the xerographic module.
Disconnect the power cord.
1.
Remove the xerographic module
(REP
9,1)
2.
(Figure
1):
Remove the heat rod
(REP1O.l).
E
REMOVE
CONNECTOR
THERMOSTAT
DISCONNECT

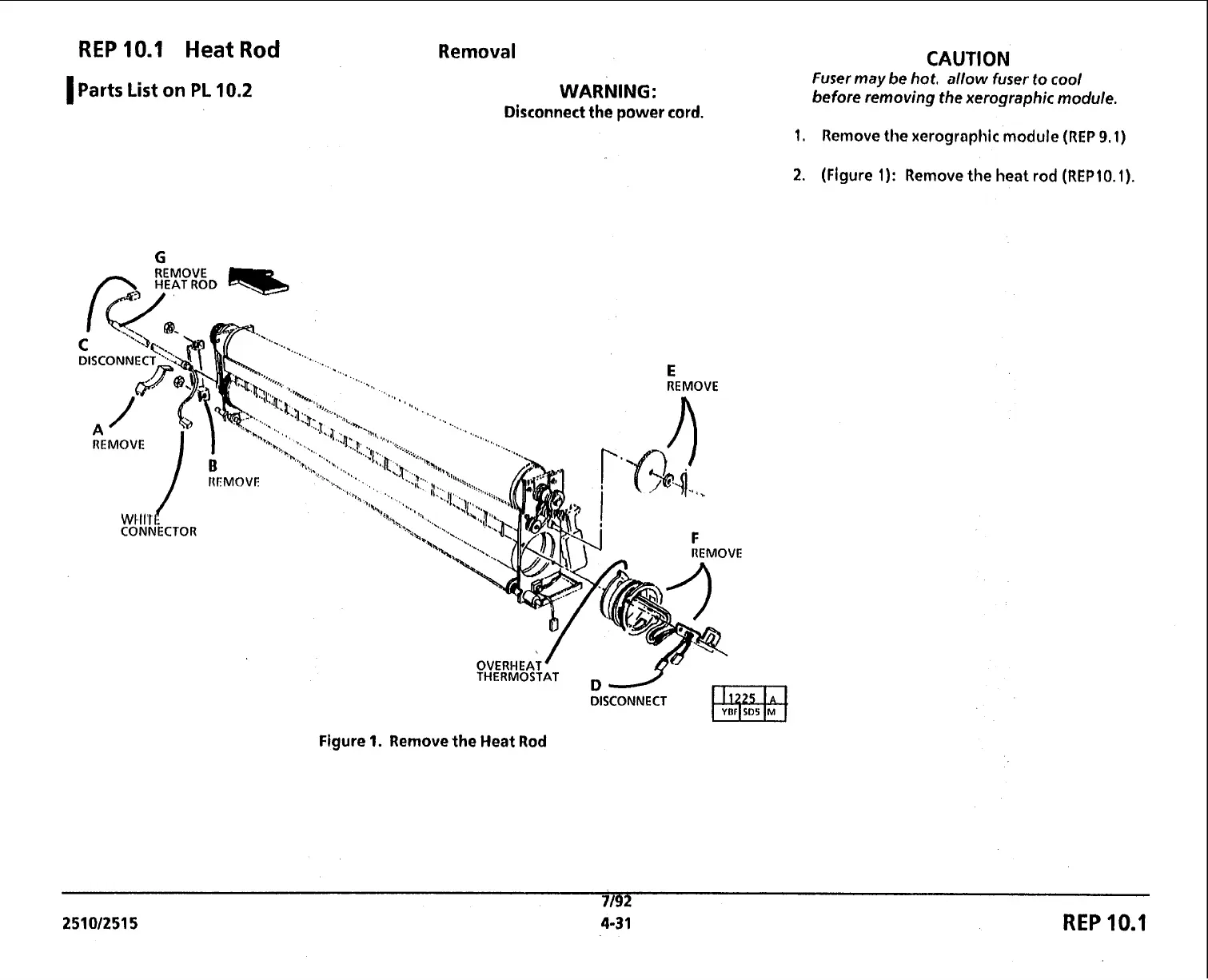

Figure 1. Remove the Heat
Rod
7/92
251012515 4-31
