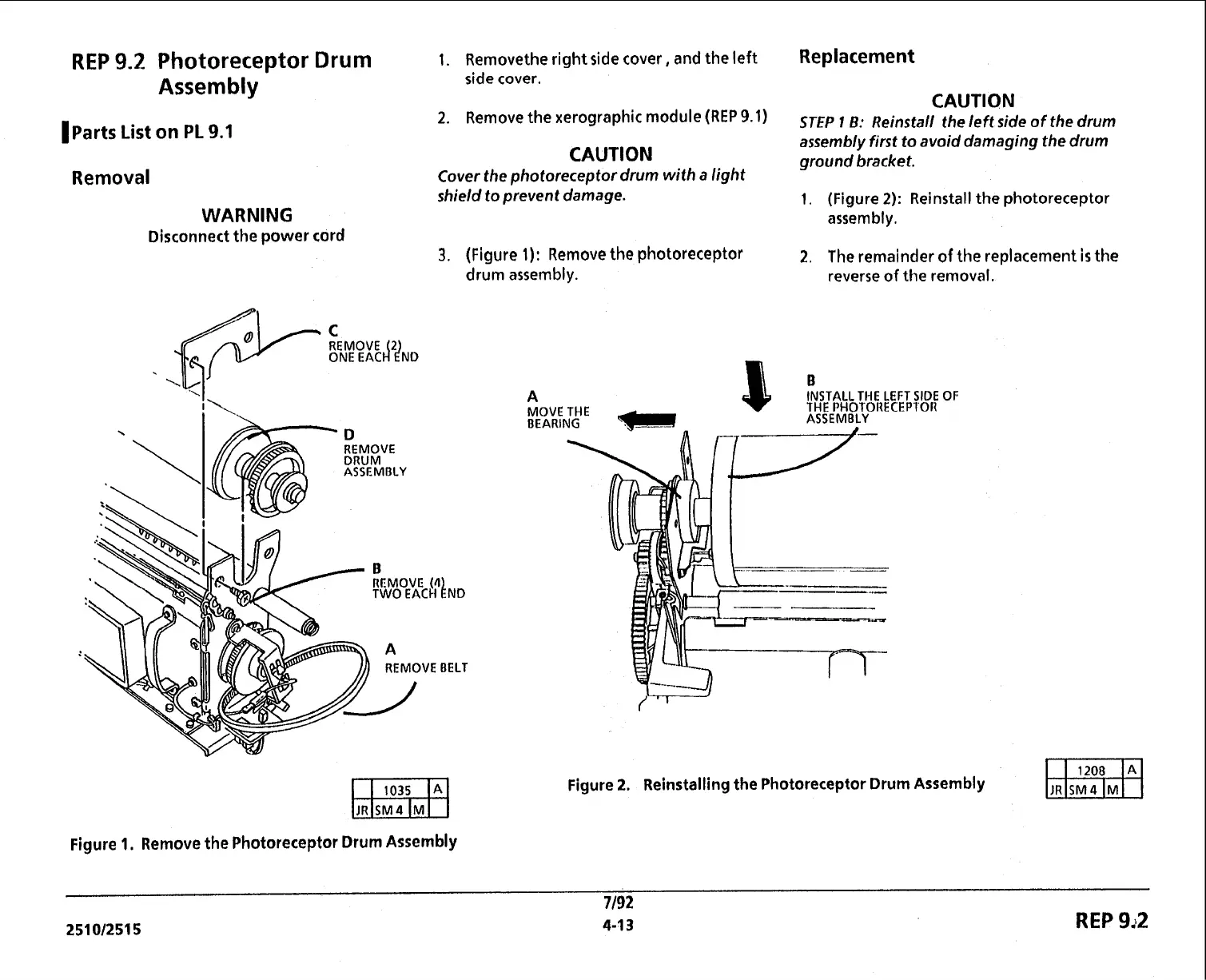

REP 9.2 Photoreceptor Drum I. Removethe right side cover, and the left Replacement
Assembly
[parts List on PL 9.1
Removal
side cover.
CAUTION
2-
Remove the xerographic module (REP 9-11
STEP 1 8: Reinstall the /eft side of the drum
CAUTION
assembly first to avoid damaging the drum
ground bracket.
Cover the photoreceptor drum with
a light
shield to prevent damage.
1. (Figure 2): Reinstall the photoreceptor
assembly.
(Figure
1): Remove the photoreceptor
2. The remainder of the replacement is the
drum assembly.
reverse
of the removal.
WARNING
Disconnect the power cord
3.
Figure 1. Remove the Photoreceptor Drum Assembly
A
INSTALL THE LEFT SIDE OF
MOVE THE
THE PHOTORECEPTOR
BEARING ASSEMBLY
Figure 2. Reinstalling the Photoreceptor Drum Assembly
REP 922
