Xerox 2515

'REP 5.1 Upper Document
Feed Rolls
Parts List on 5.1
Removal
1. WARNING: Disconnect power cord.
2. Remove the document handler.
3. (Figure 1): Remove the rolls,
Replacement
NOTE: When replacing the rolls, ensure the part
number labels are
on the left.
A
RELEASE CLIPS (2)
AND REMOVE/
END CAPS

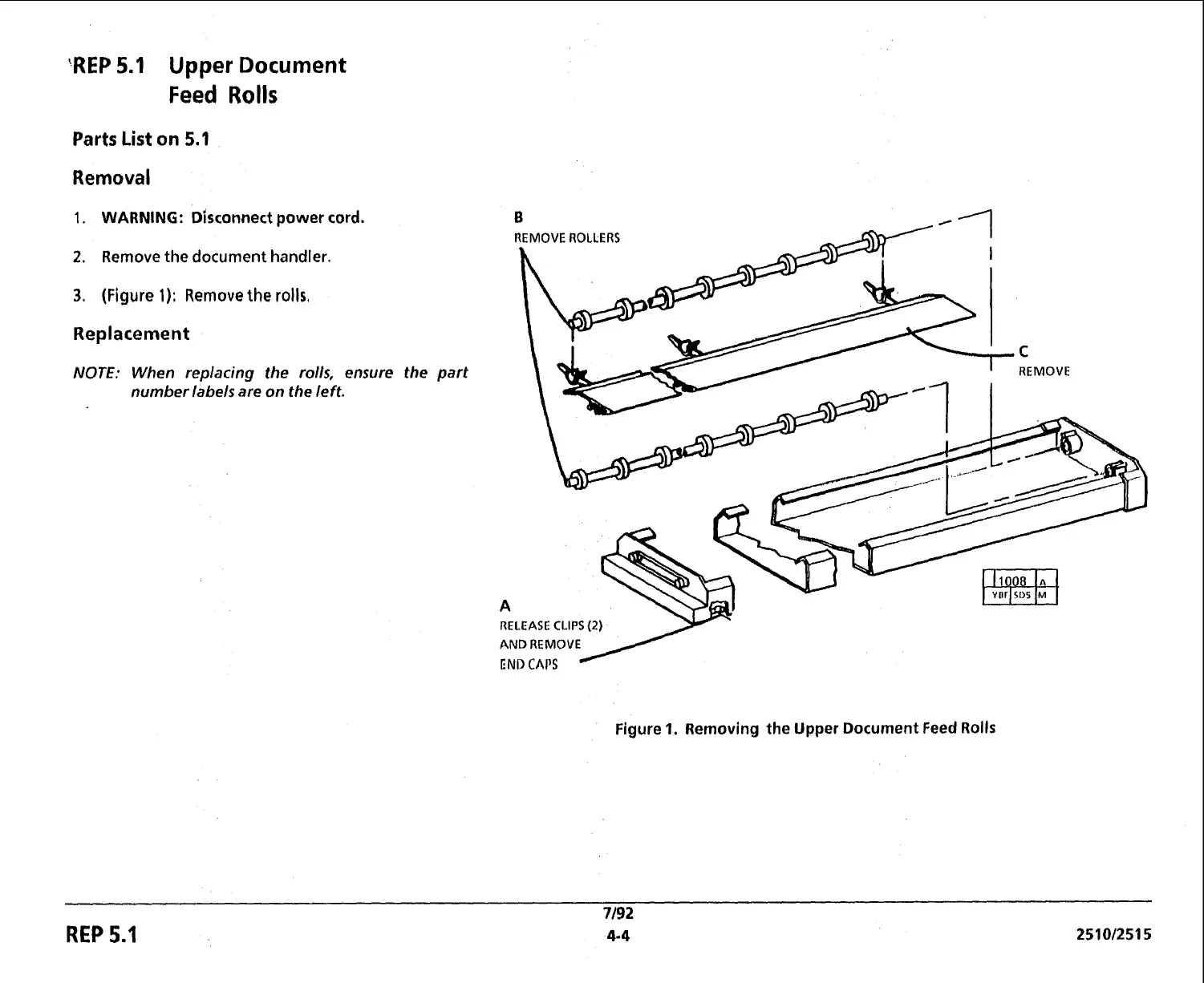

Figure 1. Removing the Upper Document Feed Rolls
REP 5.1
